Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TA5MX | TA Series |
|---|---|---|
| Applications | Audio | Audio |
| Backshell Material, Plating | Thermoplastic | Thermoplastic |
| Cable Opening | - | 0.115 - 4.83 mm |
| Cable Opening [Max] [custom] | 0.155 in | 0.155 in |
| Cable Opening [Max] [custom] | 3.94 mm | 3.94 mm |
| Cable Opening [Min] [custom] | 0.065 in | 0.065 in |
| Cable Opening [Min] [custom] | 1.65 mm | 1.65 mm |
| Color | Black, Silver | Black, Silver |
| Connector Type | Receptacle, Male Pins | Female Sockets, Plug, Receptacle, Male Pins |
| Contact Finish - Mating | Silver | Silver |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 4 A | 4 - 5 A |
| Fastening Type | Latch Lock | Latch Lock |
| Features | Backshell, Strain Relief, Cable Clamp | Cable Clamp, Backshell, Strain Relief |
| Insert Material | Polyphenylene Sulfide (PPS) | Thermoplastic, Polyphenylene Sulfide (PPS) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel, Chrome |
| Shell Material | Copper Alloy | Copper Alloy |
| Shell Size - Insert | Mini XLR | Mini XLR |
| Shielding | Shielded | Shielded |
| Termination | Solder | Solder |
| Voltage Rating | 125 VAC | 125 VAC |
TA Series

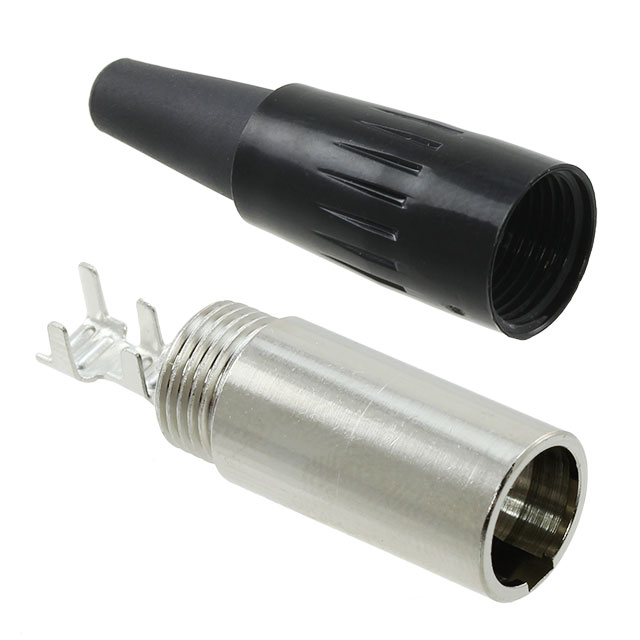

XLR Connectors 5P PLUG MALE
| Part | Connector Type | Shell Material | Contact Finish - Mating | Fastening Type | Current Rating (Amps) | Backshell Material, Plating | Termination | Color | Shielding | Mounting Type | Contact Material | Applications | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Shell Finish | Cable Opening [custom] | Shell Size - Insert | Orientation | Primary Material | Features | Insert Material | Material Flammability Rating | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. TA5FLX | Female Sockets, Plug | Copper Alloy | Silver | Latch Lock | 4 A | Thermoplastic | Solder | Black, Silver | Shielded | Free Hanging (In-Line) | Copper Alloy | Audio | 125 VAC | 85 °C | -55 °C | Nickel | 0.115 in, 0.19 in, 2.92 mm, 4.83 mm | Mini XLR | Keyed | Metal | Backshell, Cable Clamp | Thermoplastic | |||||
Switchcraft Inc. TA5MX | Male Pins, Receptacle | Copper Alloy | Silver | Latch Lock | 4 A | Thermoplastic | Solder | Black, Silver | Shielded | Free Hanging (In-Line) | Copper Alloy | Audio | 125 VAC | 85 °C | -55 °C | Nickel | Mini XLR | Keyed | Metal | Backshell, Cable Clamp, Strain Relief | Polyphenylene Sulfide (PPS) | UL94 V-0 | 0.065 in | 1.65 mm | 0.155 in | 3.94 mm | |
Switchcraft Inc. TA3MBX | Male Pins, Receptacle | Copper Alloy | Silver | Latch Lock | 5 A | Thermoplastic | Solder | Black | Shielded | Free Hanging (In-Line) | Copper Alloy | Audio | 125 VAC | 85 °C | -55 °C | Chrome | Mini XLR | Keyed | Metal | Backshell, Cable Clamp, Strain Relief | Polyphenylene Sulfide (PPS) | UL94 V-0 | 0.065 in | 1.65 mm | 0.155 in | 3.94 mm |
