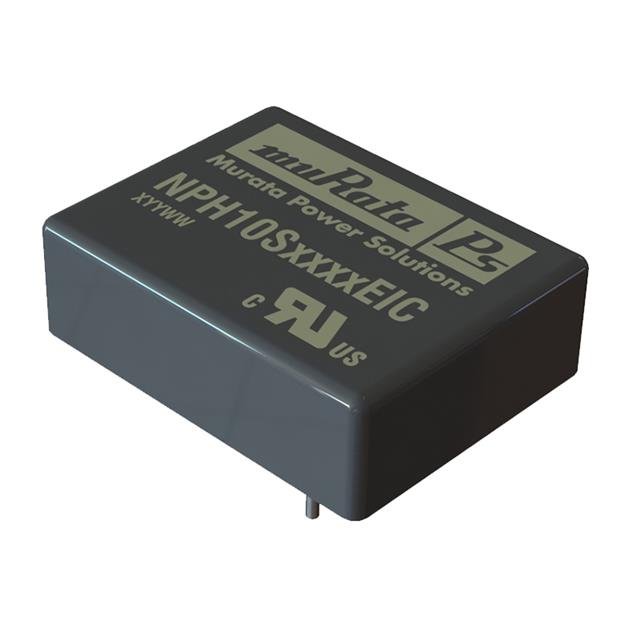

NPH10S4805IC
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 5.1V 10W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NPH10S4805IC
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 5.1V 10W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | NPH10S4805IC | NPH10S48 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) [Max] | 1.96 A | 1.96 - 2.94 A |
| Efficiency | 83 % | 80 - 83 % |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 110 °C | 110 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 6-DIP Module | 6-DIP Module |
| Power (Watts) | 10 W | 10 W |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V | 75 V |
| Voltage - Input (Min) [Min] | 36 V | 36 V |
| Voltage - Isolation | 1.5 kV | 1.5 kV |
| Voltage - Output 1 | 5.1 V | 3.4 - 5.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
NPH10S48 Series
DC DC CONVERTER 3.4V 10W
| Part | Type | Number of Outputs | Mounting Type | Voltage - Input (Min) [Min] | Efficiency | Voltage - Isolation | Applications | Package / Case | Power (Watts) | Voltage - Output 1 | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. NPH10S4803EIC | Isolated Module | 1 | Through Hole | 36 V | 80 % | 1.5 kV | ITE (Commercial) | 6-DIP Module | 10 W | 3.4 V | 2.94 A | 75 V | -40 °C | 110 °C |
Murata Power Solutions Inc. NPH10S4805EIC | Isolated Module | 1 | Through Hole | 36 V | 83 % | 1.5 kV | ITE (Commercial) | 6-DIP Module | 10 W | 5.1 V | 1.96 A | 75 V | -40 °C | 110 °C |
Murata Power Solutions Inc. NPH10S4803IC | Isolated Module | 1 | Through Hole | 36 V | 80 % | 1.5 kV | ITE (Commercial) | 6-DIP Module | 10 W | 3.4 V | 2.94 A | 75 V | -40 °C | 110 °C |
Murata Power Solutions Inc. NPH10S4805IC | Isolated Module | 1 | Through Hole | 36 V | 83 % | 1.5 kV | ITE (Commercial) | 6-DIP Module | 10 W | 5.1 V | 1.96 A | 75 V | -40 °C | 110 °C |
Description
General part information
NPH10S48 Series
Isolated Module DC DC Converter 1 Output 5.1V 1.96A 36V - 75V Input
