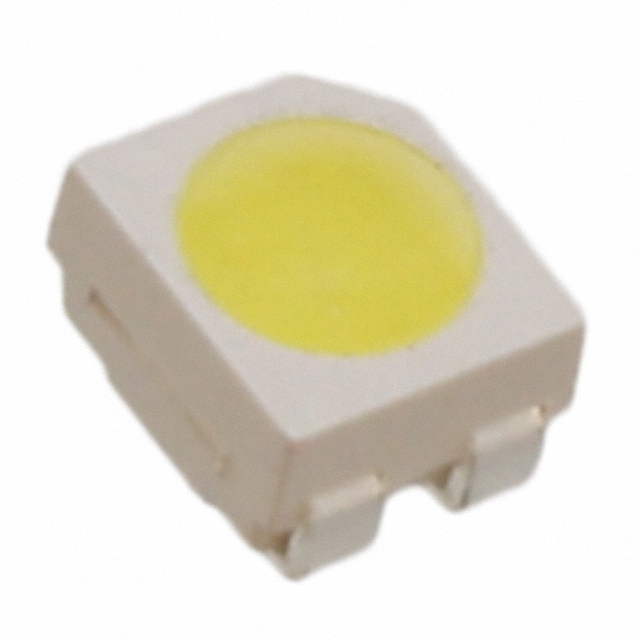

CLA1A-MKW-CXAYA513

Active

Cree LED

LED CLA1A-WKW WHT 3200K 4PLCC

Search across all available documentation for this part.

Active

Cree LED

LED CLA1A-WKW WHT 3200K 4PLCC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting CLA1A-WKW/MKW White, Warm 3200K 3.6V 30mA 4-PLCC

Technical documentation and resources

Parameters and characteristics commom to parts in this series

LED COOL WHITE 4PLCC

Part	Flux @ 25°C, Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Supplier Device Package	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	Voltage - Forward (Vf) (Typ)	Package / Case	Current - Test	Color	Current - Max [Max]	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	CCT (K)
Cree LED CLA1A-WKB-CWBYA153	7 lm	2.1 mm	0.083 "	4-PLCC	3.2 mm	0.126 in	0.11 in	2.8 mm	Surface Mount	3.6 V	4-PLCC	30 mA	Cool, White	35 mA	65 lm/W	72
Cree LED CLA1A-WKB-CWBYA343	7 lm	2.1 mm	0.083 "	4-PLCC	3.2 mm	0.126 in	0.11 in	2.8 mm	Surface Mount	3.6 V	4-PLCC	30 mA	Cool, White	35 mA	65 lm/W	72
Cree LED CLA1A-WKW-CXBYB453	7 lm	2.1 mm	0.083 "	4-PLCC	3.2 mm	0.126 in	0.11 in	2.8 mm	Surface Mount	3.6 V	4-PLCC	30 mA	Cool, White	35 mA	65 lm/W	72	5500 K
Cree LED CLA1A-MKW-CXAYA513	6 lm	2.1 mm	0.083 "	4-PLCC	3.2 mm	0.126 in	0.11 in	2.8 mm	Surface Mount	3.6 V	4-PLCC	30 mA	Warm, White	35 mA	56 lm/W	80	3200 K
