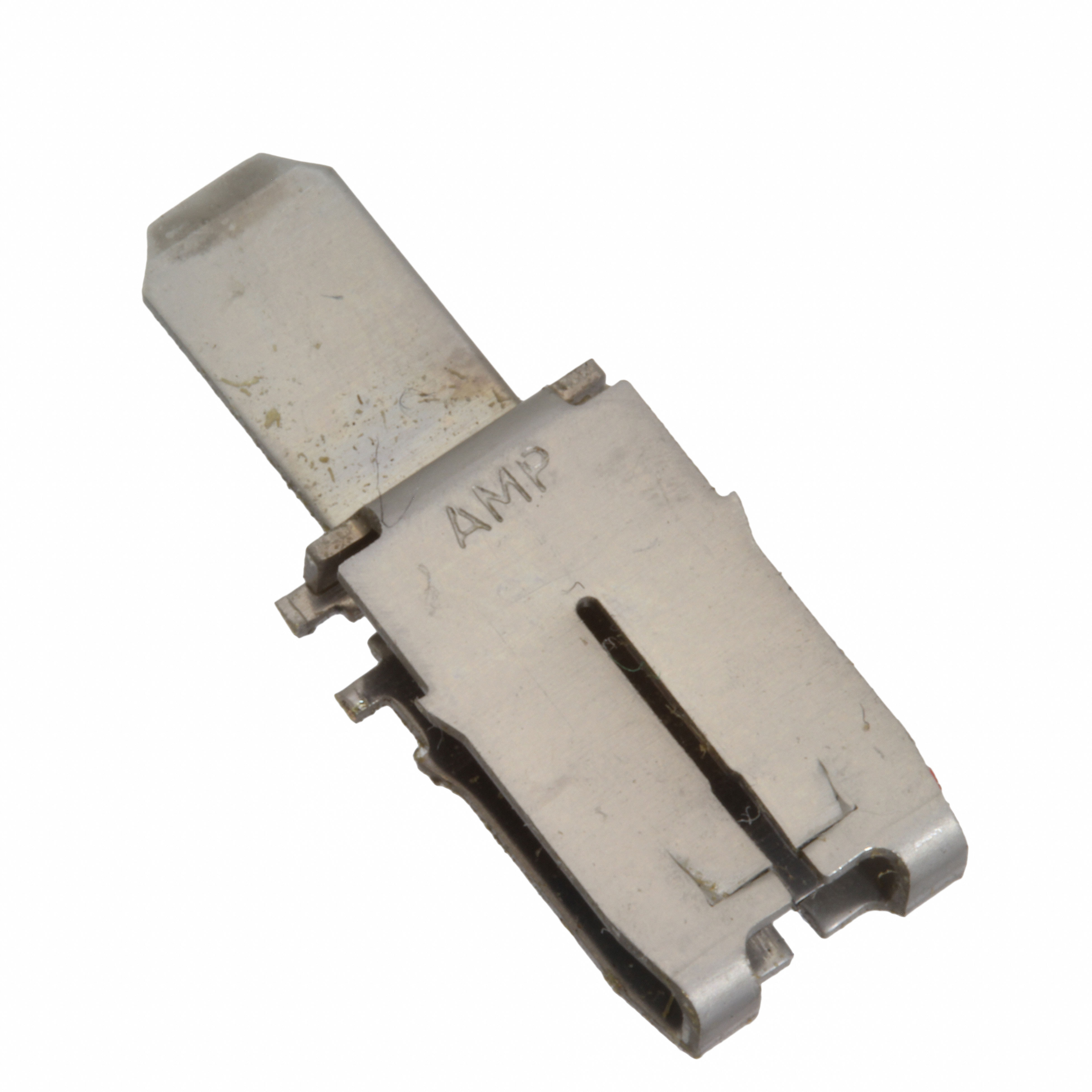

1217491-1
ActiveTE Connectivity AMP Connectors
CONN MAG TERM 20-22AWG QC 0.187
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1217491-1
ActiveTE Connectivity AMP Connectors
CONN MAG TERM 20-22AWG QC 0.187
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1217491-1 |
|---|---|
| Features | QC .187 |
| Size | 4 |
| Style | 500 |
| Terminal Type | Box IDC |
| Termination | Quick Connect |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 80000 | $ 0.13 | |
1217491 Series
CONN MAG TERM 20-22AWG QC 0.187
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Features | Terminal Type | Size | Style | Termination |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1217491-1 | 20 AWG | 22 AWG | QC .187 | Box IDC | 4 | 500 | Quick Connect |
Description
General part information
1217491 Series
Terminal Magnetic Connector 500 20-22 AWG Quick Connect
Documents
Technical documentation and resources
