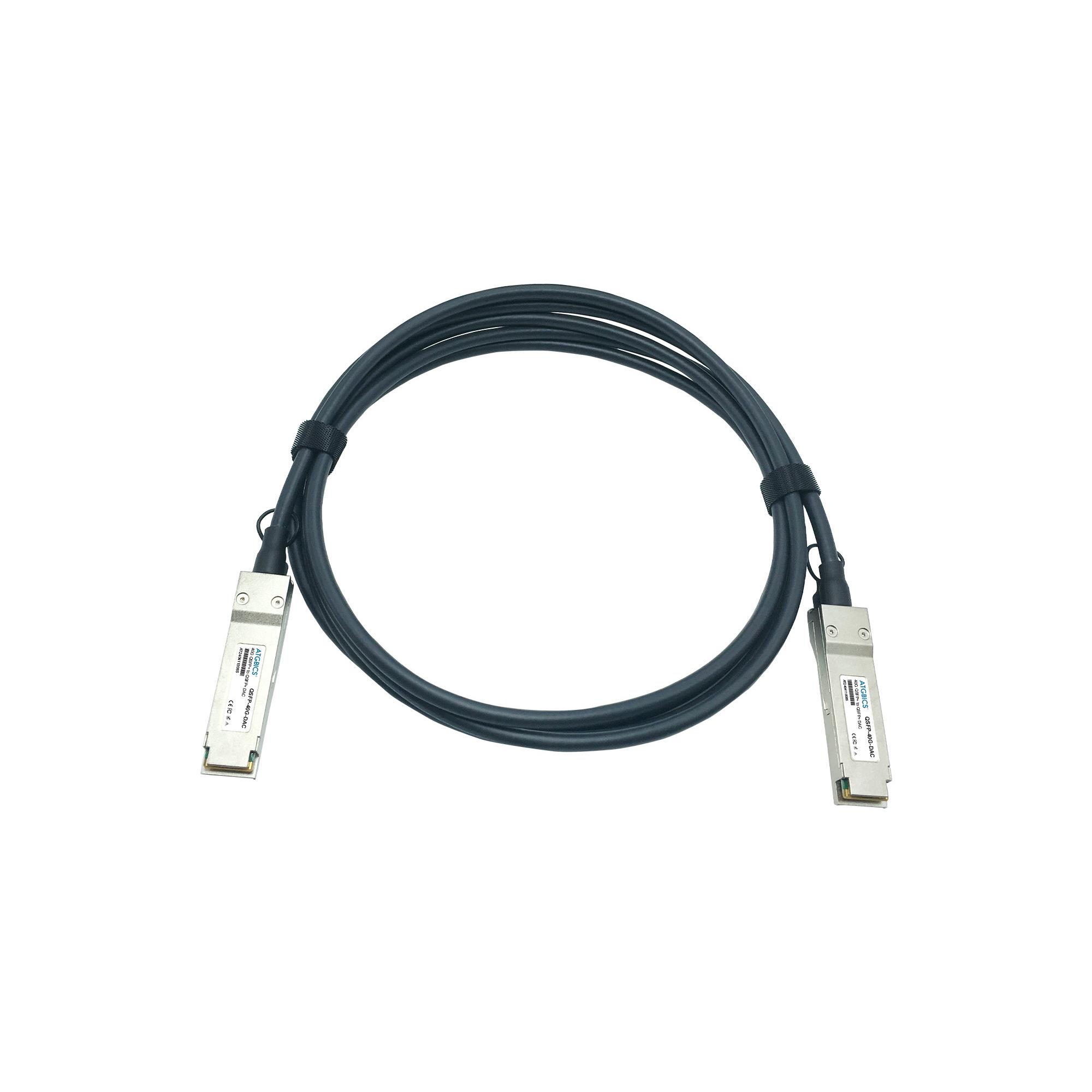

EX-QSFP-40GE-DAC-3M-C
ActiveATGBICS
COMPATIBLE DAC 40G 3M
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EX-QSFP-40GE-DAC-3M-C
ActiveATGBICS
COMPATIBLE DAC 40G 3M
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EX-QSFP-40GE-DAC-3M-C | EX-QSFP-40GE Series |
|---|---|---|
| Applications | - | General Purpose, Networking |
| Cable Connectors | QSFP+ to QSFP+ | QSFP+ to QSFP+ |
| Cable Type | Round | Round |
| Color | Black | Black |
| Connector Type | Plug to Plug | Plug to Plug, LC Duplex |
| Data Rate | - | 40 Gbps |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Passive | Passive |
| Gender | Male to Male | Male to Male |
| Length | - | 10 m |
| Length | - | 32.81 ft |
| Length [x] | 9.84 ft | 1.64 - 22.97 ' |
| Length [x] | 3 m | 1 - 500 m |
| Mounting Type | - | Pluggable, QSFP+ |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | 0 °C | 0 °C |
| Shielding | Unshielded | Unshielded |
| Usage | Data Center Server Rack, Ethernet, Network | Data Center Server Rack, Ethernet, Network |
| Voltage - Supply | - | 3.3 V |
| Wavelength | - | 1310 nm |
| Wire Gauge | 28 AWG, 30 AWG | 28 AWG, 30 AWG |
| Wire Gauge | - | 24 - 30 AWG |
EX-QSFP-40GE Series
COMPATIBLE DAC 40G 7M
| Part | Shielding | Features | Length [x] | Length [x] | Wire Gauge | Fastening Type | Usage | Cable Connectors | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Gender | Connector Type | Color | Wire Gauge | Length | Length | Voltage - Supply | Wavelength | Mounting Type | Applications | Data Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ATGBICS EX-QSFP-40GE-DAC-7M-C | Unshielded | Passive | 22.97 ' | 7 m | 24 AWG | Push-Pull | Data Center Server Rack, Ethernet, Network | QSFP+ to QSFP+ | 70 °C | 0 °C | Round | Male to Male | Plug to Plug | Black | ||||||||
ATGBICS EX-QSFP-40GE-DAC-5M-C | Unshielded | Passive | 24 AWG | Push-Pull | Data Center Server Rack, Ethernet, Network | QSFP+ to QSFP+ | 70 °C | 0 °C | Round | Male to Male | Plug to Plug | Black | ||||||||||
ATGBICS EX-QSFP-40GE-DAC-50CM-C | Unshielded | Passive | 1.64 ft | 500 mm | 30 AWG | Push-Pull | Data Center Server Rack, Ethernet, Network | QSFP+ to QSFP+ | 70 °C | 0 °C | Round | Male to Male | Plug to Plug | Black | ||||||||
ATGBICS EX-QSFP-40GE-DAC-3M-C | Unshielded | Passive | 9.84 ft | 3 m | Push-Pull | Data Center Server Rack, Ethernet, Network | QSFP+ to QSFP+ | 70 °C | 0 °C | Round | Male to Male | Plug to Plug | Black | 28 AWG, 30 AWG | ||||||||
ATGBICS EX-QSFP-40GE-DAC-10M-C | Unshielded | Passive | 24 AWG | Push-Pull | Data Center Server Rack, Ethernet, Network | QSFP+ to QSFP+ | 70 °C | 0 °C | Round | Male to Male | Plug to Plug | Black | 10 m | 32.81 ft | ||||||||
ATGBICS EX-QSFP-40GE-DAC-1M-C | Unshielded | Passive | 3.28 ft | 1 m | 30 AWG | Push-Pull | Data Center Server Rack, Ethernet, Network | QSFP+ to QSFP+ | 70 °C | 0 °C | Round | Male to Male | Plug to Plug | Black | ||||||||
ATGBICS EX-QSFP-40GE-DAC-2M-C | Unshielded | Passive | 6.56 ft | 2 m | 30 AWG | Push-Pull | Data Center Server Rack, Ethernet, Network | QSFP+ to QSFP+ | 70 °C | 0 °C | Round | Male to Male | Plug to Plug | Black | ||||||||
ATGBICS EX-QSFP-40GE-LR4-C | LC Duplex | 3.3 V | 1310 nm | Pluggable, QSFP+ | General Purpose, Networking | 40 Gbps |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 68.00 | |
| 50 | $ 64.60 | |||
| 150 | $ 61.20 | |||
| 1000 | $ 57.80 | |||
| Retail Package | 1 | $ 68.00 | ||
| 100 | $ 64.60 | |||
| 1000 | $ 61.20 | |||
Description
General part information
EX-QSFP-40GE Series
Position QSFP+ to QSFP+ Plug to Plug 9.84' (3.00m) Black Unshielded
