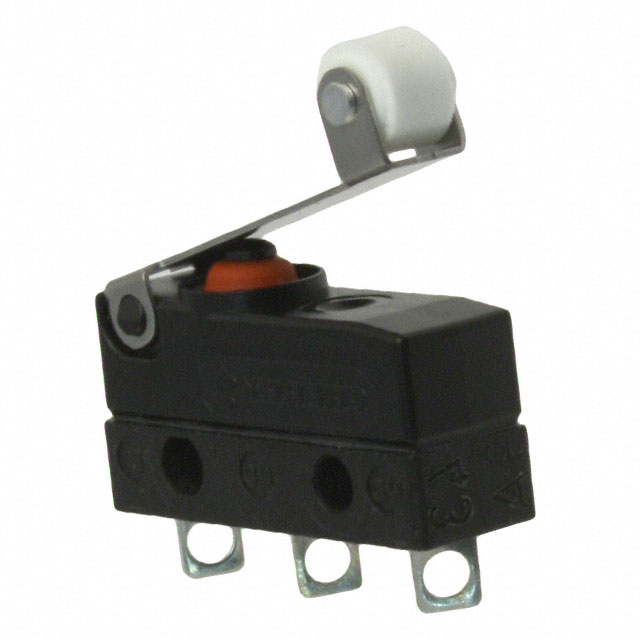

DC2CA1RB

Active

ZF Electronics

SWITCH SNAP ACTION SPDT 10A 125V

Search across all available documentation for this part.

Active

ZF Electronics

SWITCH SNAP ACTION SPDT 10A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Ingress Protection	Current Rating (Amps)	Mechanical Life	Switch Function	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Termination Style	Actuator Type	Electrical Life	Operating Force	Overtravel	Overtravel	Circuit	Differential Travel	Differential Travel	Pretravel	Pretravel
ZF Electronics DC2CA1RB	IP67 - Dust Tight Waterproof	10 A	1000000 Cycles	On-Mom	Chassis Mount	-40 °C	120 °C	125 V	Solder Lug	Lever Roller	6000 Cycles	163 gf	1.5 mm	0.06 "	SPDT	0.8 mm	0.031 "	0.197 in	5 mm
ZF Electronics DC2C-A1LB	IP67 - Dust Tight Waterproof	10 A	1000000 Cycles	On-Mom	Chassis Mount	-40 °C	120 °C	125 V	Solder Lug	Lever Straight	6000 Cycles	153 gf	1.5 mm	0.06 "	SPDT	0.8 mm	0.031 "	0.197 in	5 mm
ZF Electronics DC2C-BWAD	IP67 - Dust Tight Waterproof	10 A	1000000 Cycles	On-Mom	Chassis Mount	-40 °C	120 °C	125 V		Lever Straight	6000 Cycles				SPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Switch SPDT Chassis Mount
