963357-2

Active

TE Connectivity AMP Connectors

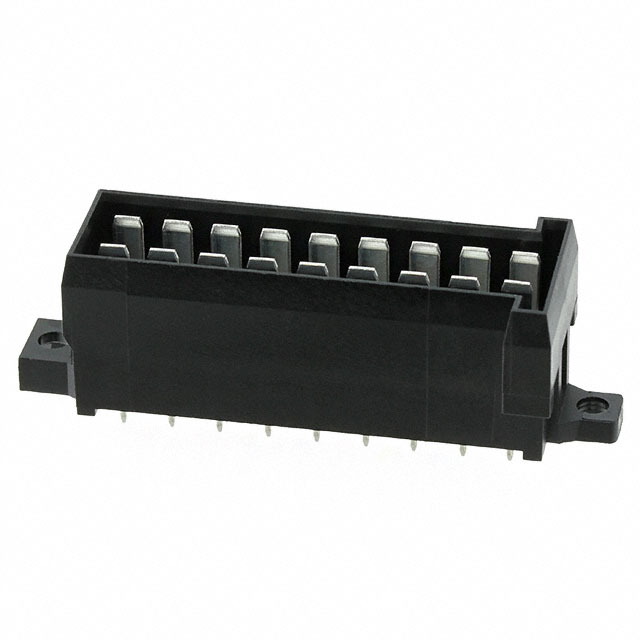

CONN HEADER VERT 18POS 5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

963357-2

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 18POS 5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	963357-2	963357 Series

Connector Type	Plug	Plug
Contact Finish - Mating	Silver	Silver
Contact Length - Mating	0.366 in	0.366 in
Contact Length - Mating	9.3 mm	9.3 mm
Contact Length - Post [x]	0.134 in	0.134 in
Contact Length - Post [x]	3.4 mm	3.4 mm
Contact Material	Copper Zinc	Copper Zinc
Contact Shape	Rectangular	Rectangular
Contact Type	Tab	Tab
Features	Board Guide, Mounting Flange	Board Guide, Mounting Flange
Insulation Color	Black	Black
Insulation Height	18.3 mm	18.3 mm
Insulation Height	0.72 in	0.72 in
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole	Through Hole
Number of Positions	18	4 - 22
Number of Positions Loaded	All	All
Number of Rows	2	2
Pitch - Mating	5 mm	5 mm
Pitch - Mating	0.197 "	0.197 "
Row Spacing - Mating	0.217 in	0.217 in
Row Spacing - Mating	5.51 mm	5.51 mm
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder

963357 Series

CONN HEADER VERT 4POS 5MM

Part	Contact Shape	Contact Type	Features	Contact Finish - Mating	Termination	Contact Material	Insulation Height	Insulation Height	Insulation Color	Mounting Type	Number of Positions	Style	Number of Rows	Insulation Material	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating	Pitch - Mating	Connector Type
TE Connectivity AMP Connectors 963357-6	Rectangular	Tab	Board Guide, Mounting Flange	Silver	Solder	Copper Zinc	18.3 mm	0.72 in	Black	Through Hole	4	Board to Cable/Wire	2	Polybutylene Terephthalate (PBT), Glass Filled	All	0.366 in	9.3 mm	0.134 in	3.4 mm	0.217 in	5.51 mm	5 mm	0.197 "	Plug
TE Connectivity AMP Connectors 963357-3	Rectangular	Tab	Board Guide, Mounting Flange	Silver	Solder	Copper Zinc	18.3 mm	0.72 in	Black	Through Hole	14	Board to Cable/Wire	2	Polybutylene Terephthalate (PBT), Glass Filled	All	0.366 in	9.3 mm	0.134 in	3.4 mm	0.217 in	5.51 mm	5 mm	0.197 "	Plug
TE Connectivity AMP Connectors 963357-2	Rectangular	Tab	Board Guide, Mounting Flange	Silver	Solder	Copper Zinc	18.3 mm	0.72 in	Black	Through Hole	18	Board to Cable/Wire	2	Polybutylene Terephthalate (PBT), Glass Filled	All	0.366 in	9.3 mm	0.134 in	3.4 mm	0.217 in	5.51 mm	5 mm	0.197 "	Plug
TE Connectivity AMP Connectors 963357-4	Rectangular	Tab	Board Guide, Mounting Flange	Silver	Solder	Copper Zinc	18.3 mm	0.72 in	Black	Through Hole	10	Board to Cable/Wire	2	Polybutylene Terephthalate (PBT), Glass Filled	All	0.366 in	9.3 mm	0.134 in	3.4 mm	0.217 in	5.51 mm	5 mm	0.197 "	Plug
TE Connectivity AMP Connectors 963357-1	Rectangular	Tab	Board Guide, Mounting Flange	Silver	Solder	Copper Zinc	18.3 mm	0.72 in	Black	Through Hole	22 positions	Board to Cable/Wire	2	Polybutylene Terephthalate (PBT), Glass Filled	All	0.366 in	9.3 mm	0.134 in	3.4 mm	0.217 in	5.51 mm	5 mm	0.197 "	Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.95
		10	$ 6.93
		252	$ 6.13
		1008	$ 5.14

Description

General part information

963357 Series

Connector Header Through Hole 18 position 0.197" (5.00mm)
