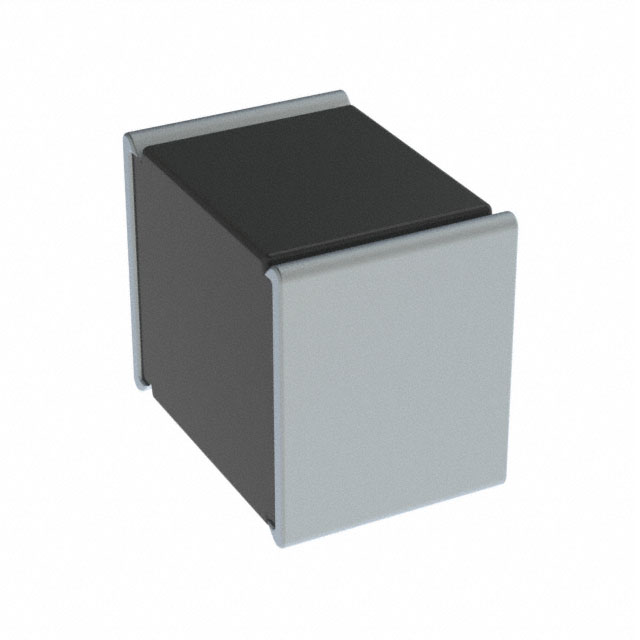

SMDTC03330KB00KS00
ActiveWIMA
CAP FILM 0.33UF 10% 40VAC 1812
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMDTC03330KB00KS00
ActiveWIMA
CAP FILM 0.33UF 10% 40VAC 1812
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMDTC03330KB00KS00 |
|---|---|
| Applications | DC Link, DC Filtering |
| Capacitance | 0.33 µF |
| Dielectric Material | Polyethylene Terephthalate (PET), Metallized, Polyester |
| Height - Seated (Max) [Max] | 0.169 " |
| Height - Seated (Max) [Max] | 4.3 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1812 (4532 Metric) |
| Size / Dimension [x] | 0.189 " |
| Size / Dimension [x] | 4.8 mm |
| Size / Dimension [y] | 0.13 in |
| Size / Dimension [y] | 3.3 mm |
| Termination | Solder Pads |
| Tolerance | 10 % |
| Voltage Rating - AC | 40 V |
| Voltage Rating - DC | 63 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 6000 | $ 0.54 | |
Description
General part information
SMDTC03330KB00KS00
0.33 µF Film Capacitor 40V 63V Polyester, Polyethylene Terephthalate (PET), Metallized 1812 (4532 Metric)
