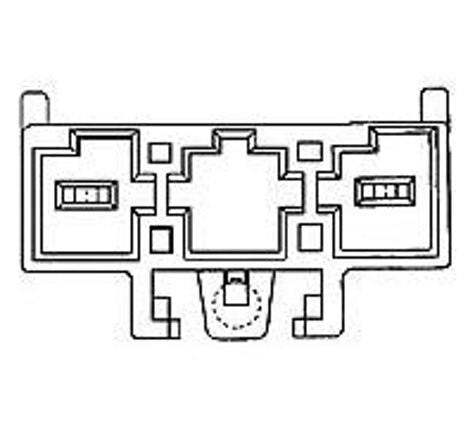

917745-4
ActiveTE Connectivity AMP Connectors
POWER TO THE BOARD AMP POWER D/L TAB HDR ASY 2P V
917745-4
ActiveTE Connectivity AMP Connectors
POWER TO THE BOARD AMP POWER D/L TAB HDR ASY 2P V
Description
General part information
917745-4
POWER TO THE BOARD AMP POWER D/L TAB HDR ASY 2P V
Technical Specifications
Parameters and characteristics for this part
| Specification | 917745-4 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.15 in |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Tab |
| Current Rating | 14 A |
| Fastening Type | Latch Holder |
| Features | Board Guide |
| Insulation Color | Yellow |
| Insulation Height | 0.575 in |
| Insulation Material | Nylon 6/6, Polyamide (PA66), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -30 °C |
| Pitch - Mating | 0.512 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Kinked Pin, Solder |
| Voltage Rating | 300 VAC/DC |
