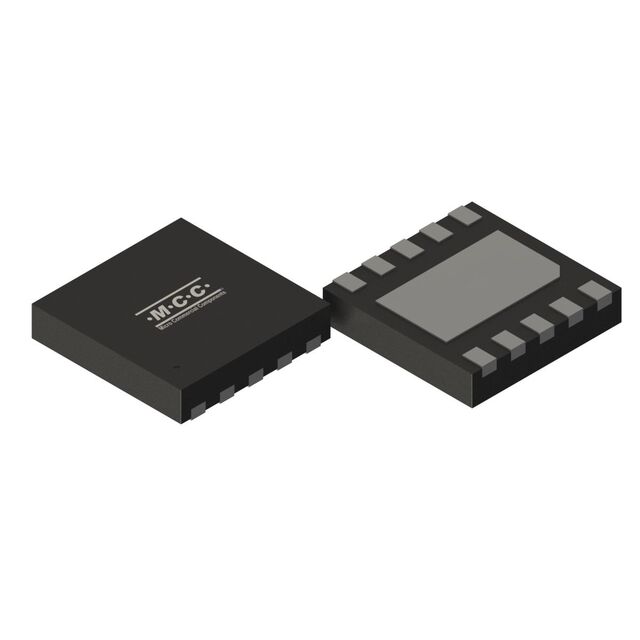

ESDLC2504P8-TP
ActiveMCC (Micro Commercial Components)
TVS DIODE 2.5VWM 15VC DFN262610
ESDLC2504P8-TP
ActiveMCC (Micro Commercial Components)
TVS DIODE 2.5VWM 15VC DFN262610
Description
General part information
ESDLC2504P8-TP
15V Clamp 25A (8/20µs) Ipp Tvs Diode Surface Mount DFN2626-10
Technical Specifications
Parameters and characteristics for this part
| Specification | ESDLC2504P8-TP |
|---|---|
| Applications | General Purpose |
| Capacitance | 3.8 pF |
| Current - Peak Pulse | 25 A |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 10-UFDFN Exposed Pad |
| Package Name | DFN2626-10 |
| Power - Peak Pulse | 375 W |
| Power Line Protection | Yes |
| Type | Steering (Rail to Rail) |
| Unidirectional Channels | 4 |
| Voltage - Clamping (Max) | 15 V |
| Voltage - Reverse Standoff (Max) | 2.5 V |
