662-037-364-05C

Active

EDAC Inc.

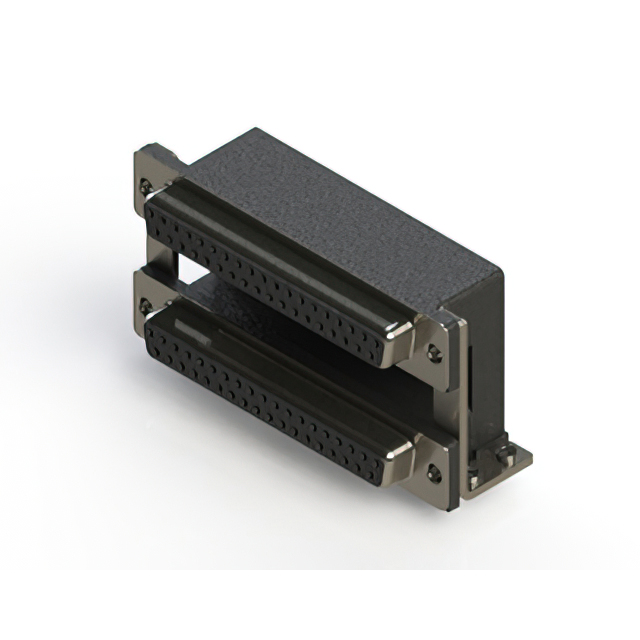

CONN D-SUB RCPT 37POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

662-037-364-05C

Active

EDAC Inc.

CONN D-SUB RCPT 37POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	662-037-364-05C

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded, Mounting Brackets
Flange Feature	Housing/Shell (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4
Termination	Solder

662-037 Series

...

Part	Shell Size, Connector Layout	Material Flammability Rating	Backset Spacing	Backset Spacing	Current Rating (Amps)	Number of Positions	Dielectric Material	Features	Termination	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Finish Thickness	Contact Type	Connector Type	Shell Material, Finish	Flange Feature	Connector Style	Contact Finish	Color	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 662-037-264-055	4	UL94 V-0	8.08 mm	0.318 "	3 A	37	Polyester Thermoplastic	Mounting Brackets Shielded	Solder	2	85 °C	-55 °C	Through Hole Right Angle	Flash	Signal	Receptacle Female Sockets	Nickel Plated Steel	Housing/Shell (4-40)	D-Sub - Stacked	Gold	Black
EDAC Inc. 662-037-664-031	4	UL94 V-0	8.08 mm	0.318 "	3 A	37	Polyester Thermoplastic	Board Lock Mounting Brackets Shielded	Solder	2	85 °C	-55 °C	Through Hole Right Angle		Signal	Receptacle Female Sockets	Nickel Plated Steel	Housing/Shell (M3)	D-Sub - Stacked	Gold	Black	0.76 Ám	30 Áin
EDAC Inc. 662-037-664-052	4	UL94 V-0	8.08 mm	0.318 "	3 A	37	Polyester Thermoplastic	Mounting Brackets Shielded	Solder	2	85 °C	-55 °C	Through Hole Right Angle		Signal	Receptacle Female Sockets	Nickel Plated Steel	Housing/Shell (4-40)	D-Sub - Stacked	Gold	Black	0.76 Ám	30 Áin
EDAC Inc. 662-037-264-000	4	UL94 V-0	8.08 mm	0.318 "	3 A	37	Polyester Thermoplastic	Mounting Brackets Shielded	Solder	2	85 °C	-55 °C	Through Hole Right Angle	Flash	Signal	Receptacle Female Sockets	Nickel Plated Steel	Housing/Shell (Unthreaded)	D-Sub - Stacked	Gold	Black
EDAC Inc. 662-037-364-031	4	UL94 V-0	8.08 mm	0.318 "	3 A	37	Polyester Thermoplastic	Board Lock Mounting Brackets Shielded	Solder	2	85 °C	-55 °C	Through Hole Right Angle		Signal	Receptacle Female Sockets	Nickel Plated Steel	Housing/Shell (M3)	D-Sub - Stacked	Gold	Black	0.38 µm	15 µin
EDAC Inc. 662-037-664-002	4	UL94 V-0	8.08 mm	0.318 "	3 A	37	Polyester Thermoplastic	Mounting Brackets Shielded	Solder	2	85 °C	-55 °C	Through Hole Right Angle		Signal	Receptacle Female Sockets	Nickel Plated Steel	Housing/Shell (4-40)	D-Sub - Stacked	Gold	Black	0.76 Ám	30 Áin
EDAC Inc. 662-037-664-043	4	UL94 V-0	8.08 mm	0.318 "	3 A	37	Polyester Thermoplastic	Board Lock Mounting Brackets Shielded	Solder	2	85 °C	-55 °C	Through Hole Right Angle		Signal	Receptacle Female Sockets	Nickel Plated Steel	Female Screwlock (4-40) Mating Side	D-Sub - Stacked	Gold	Black	0.76 Ám	30 Áin
EDAC Inc. 662-037-264-059	4	UL94 V-0	8.08 mm	0.318 "	3 A	37	Polyester Thermoplastic	Mounting Brackets Shielded	Solder	2	85 °C	-55 °C	Through Hole Right Angle	Flash	Signal	Receptacle Female Sockets	Nickel Plated Steel	Female Screwlock (4-40) Mating Side	D-Sub - Stacked	Gold	Black
EDAC Inc. 662-037-364-05C	4	UL94 V-0	8.08 mm	0.318 "	3 A	37	Polyester Thermoplastic	Mounting Brackets Shielded	Solder	2	85 °C	-55 °C	Through Hole Right Angle		Signal	Receptacle Female Sockets	Nickel Plated Steel	Housing/Shell (M3)	D-Sub - Stacked	Gold	Black	0.38 µm	15 µin
EDAC Inc. 662-037-664-045	4	UL94 V-0	8.08 mm	0.318 "	3 A	37	Polyester Thermoplastic	Board Lock Mounting Brackets Shielded	Solder	2	85 °C	-55 °C	Through Hole Right Angle		Signal	Receptacle Female Sockets	Nickel Plated Steel	Housing/Shell (4-40)	D-Sub - Stacked	Gold	Black	0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 14.24

Description

General part information

662-037 Series

37, 37 Position D-Sub - Stacked Receptacle, Female Sockets Connector
