Specification	XC7K325T-1FBG900C

Mounting Type	Surface Mount
Number of I/O	500
Number of LABs/CLBs	25475
Number of Logic Elements/Cells	326080
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	0 °C
Package / Case	FCBGA, 900-BBGA
Package Length	31 mm
Package Name	900-FCBGA
Package Width	31 mm
Total RAM Bits	16404480 bits
Voltage - Supply (Maximum)	1.03 V
Voltage - Supply (Minimum)	0.97 V

XC7K325 Series

Part	Interconnect System	Suggested Programming Environment	P/N Breakdown	Contents	Platform	Type	Utilized IC / Part	Number of Logic Elements/Cells	Number of LABs/CLBs	Number of I/O	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Total RAM Bits	Mounting Type	Package Width	Package Name	Package Length	For Use With/Related Products
AMD / Xilinx DK-K7-EMBD-G-J	FMC	Vivado	J = Japan version does not ship with a power supply	Board Cable(s) - Power Supply Not Included -	Kintex-7 FPGA Embedded Japan PCIe Card	FPGA	XC7K325T
AMD / Xilinx XC7K325T-L2FFG900E								326080	25475	500	100 °C	0 °C	900-BBGA FCBGA	0.93 V	0.87 V	16404480 bits	Surface Mount	31 mm	900-FCBGA	31 mm
AMD / Xilinx EK-K7-KC705-CES-G	FMC	ISE		Board Cable Power Supply	Kintex-7 FPGA KC705 CES PCIe Card	FPGA	XC7K325T														XC7K325T
AMD / Xilinx XC7K325T-1FFG900I								326080	25475	500	100 °C	-40 °C	900-BBGA FCBGA	1.03 V	0.97 V	16404480 bits	Surface Mount	31 mm	900-FCBGA	31 mm
AMD / Xilinx XC7K325T-L2FBG900I								326080	25475	500	100 °C	-40 °C	900-BBGA FCBGA	1.03 V	0.97 V	16404480 bits	Surface Mount	31 mm	900-FCBGA	31 mm
AMD / Xilinx CK-K7-KC724-G-J			J = Japan version does not ship with a power supply	Board Cable(s) - Power Supply Not Included -	Kintex-7 FPGA KC724 Japan	FPGA	XC7K325T														XC7K325T
AMD / Xilinx XC7K325T-2FF676I								326080	25475	400	100 °C	-40 °C	676-BBGA FCBGA	1.03 V	0.97 V	16404480 bits	Surface Mount	27 mm	676-FCBGA	27 mm
AMD / Xilinx XC7K325T-2FBG676I								326080	25475	400	100 °C	-40 °C	676-BBGA FCBGA	1.03 V	0.97 V	16404480 bits	Surface Mount	27 mm	676-FCBGA	27 mm

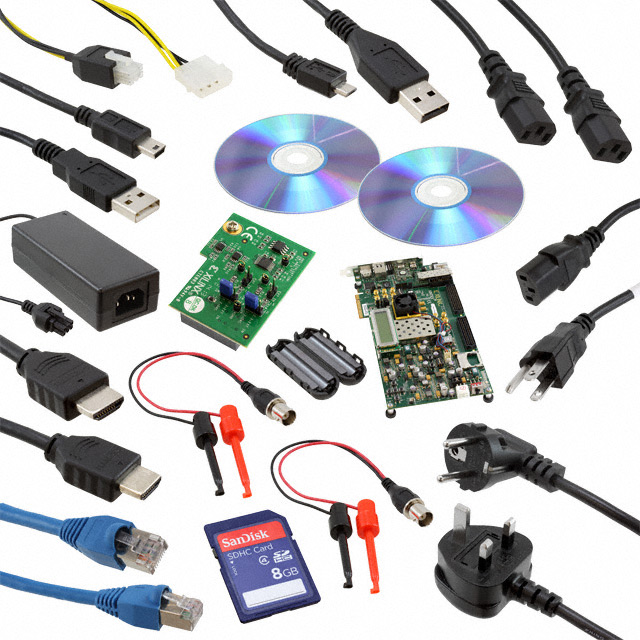

AMD / Xilinx EK-K7-KC705-G	FMC	ISE		Board Cable Power Supply	Kintex-7 FPGA KC705 PCIe Card	FPGA	XC7K325T														XC7K325T
AMD / Xilinx XC7K325T-2FFG676I								326080	25475	400	100 °C	-40 °C	676-BBGA FCBGA	1.03 V	0.97 V	16404480 bits	Surface Mount	27 mm	676-FCBGA	27 mm
