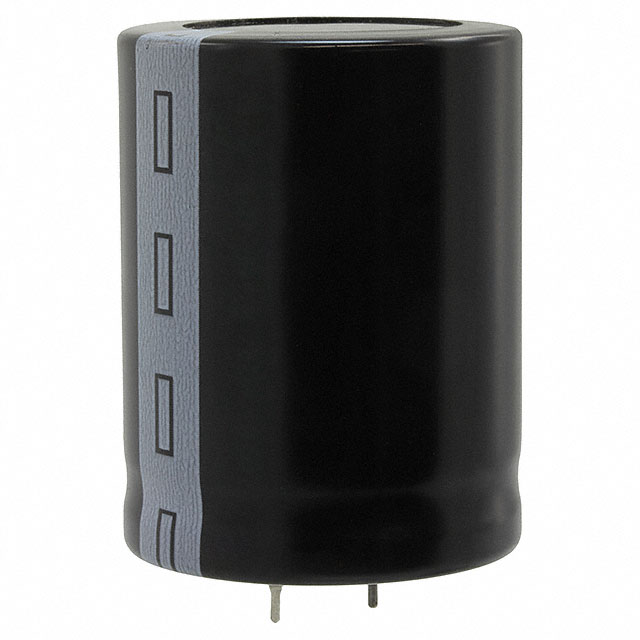

Specification	B43508B9567M002

Applications	General Purpose
Capacitance	560 µF
ESR (Equivalent Series Resistance)	220 mOhm
Height - Seated (Max)	1.661 in
Impedance	310 mOhm
Lead Spacing	0.394 in
Lifetime	3000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package Leads	3 Leads
Package Name	Radial, Can - Snap-In
Polarization	Polar
Ripple Current	1.83 A
Size / Dimension Diameter	1.378 in
Tolerance	20 %
Voltage - Rated	400 V
