SS-92000-001

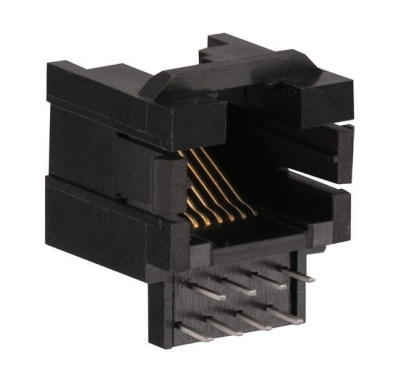

ActiveMODULAR CONNECTOR, BOTTOM ENTRY, RJ45 JACK, 1 X 1 (PORT), 8P8C, THROUGH HOLE MOUNT
SS-92000-001
ActiveMODULAR CONNECTOR, BOTTOM ENTRY, RJ45 JACK, 1 X 1 (PORT), 8P8C, THROUGH HOLE MOUNT
Description
General part information
SS-92000-001
SS-92000-001 is an 8 contact RJ modular jack that supports the transmission of Gigabit Ethernet signals targeted to hubs, switches, and routers. The bottom entry vertical jack is specifically made for small form factor designs. This jack allows interconnect between PC boards, leaving the valuable real estate of board edges free to be used for other I/O connectivity. Typical applications include eMobility, front end, industrial, medical, military, railway and space.
Technical Specifications
Parameters and characteristics for this part
| Specification | SS-92000-001 |
|---|---|
| Connector Type | Ethernet, RJ45, Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 6 µin |
| Contact Material | Copper Alloy |
| Housing Material | Thermoplastic |
| LED Color | Does Not Contain LED |
| Mounting Type | Panel Mount |
| Number of Contacts | 8 |
| Number of Ports | 1 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Shielding | Unshielded |
| Tab Direction | User Selectable |
| Termination | Solder |
