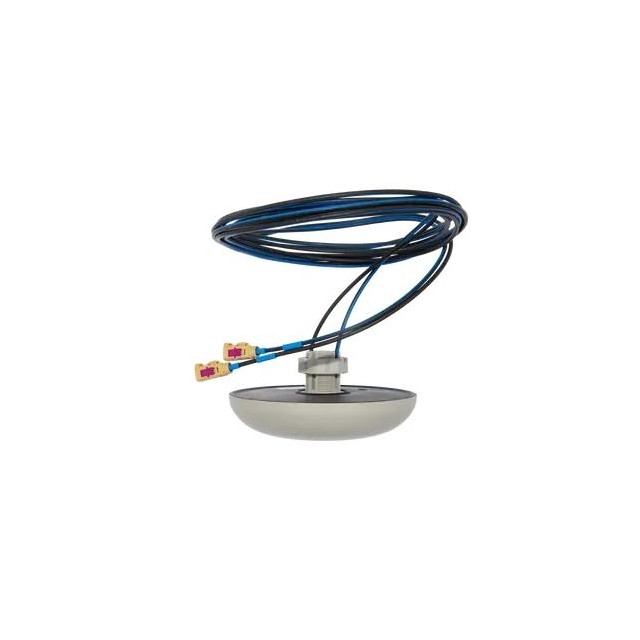

1399.99.0186
ActiveHuber+Suhner, Inc.
1399.99.0186
1399.99.0186
ActiveHuber+Suhner, Inc.
1399.99.0186
Description
General part information
1399.99.0186
1399.99.0186
Technical Specifications
Parameters and characteristics for this part
| Specification | 1399.99.0186 |
|---|---|
| Antenna Type | Dome |
| Applications | Wi-Fi, Cellular |
| Features | Cable, 300mm |
| Frequency (Center/Band) | 6.55GHz, 2.595GHz, 2.4GHz, 5.4375GHz, 3.8GHz |
| Frequency (Center/Band) - 1 | 2.4 GHz |
| Frequency (Center/Band) - 2 | 2.595 GHz |
| Frequency (Center/Band) - 3 | 3.8 GHz |
| Frequency (Center/Band) - 4 | 5.4375 GHz |
| Frequency (Center/Band) - 5 | 6.55 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 2.5 GHz |
| Frequency Range (Band 1) Minimum | 2.3 GHz |
| Frequency Range (Band 2) Maximum | 2.69 GHz |
| Frequency Range (Band 2) Minimum | 2.5 GHz |
| Frequency Range (Band 3) Maximum | 4.2 GHz |
| Frequency Range (Band 3) Minimum | 3.4 GHz |
| Frequency Range (Band 4) Maximum | 5.975 GHz |
| Frequency Range (Band 4) Minimum | 4.9 GHz |
| Frequency Range (Band 5) Maximum | 7.125 GHz |
| Frequency Range (Band 5) Minimum | 5.975 GHz |
| Gain | 1 dBi, 0 dBi, 2 dBi |
| Height (Max) | 1.307 in |
| Ingress Protection | IP68, IP69 |
| Mounting Type | Panel Mount |
| Number of Bands | 5 |
| Power - Max | 40 W |
| RF Family/Standard | WiFi, Cellular |
| Termination Type | Fakra Female |
| VSWR | 1.5, 1.7, 1.8 |
