5650951-5
ActiveTE Connectivity AMP Connectors

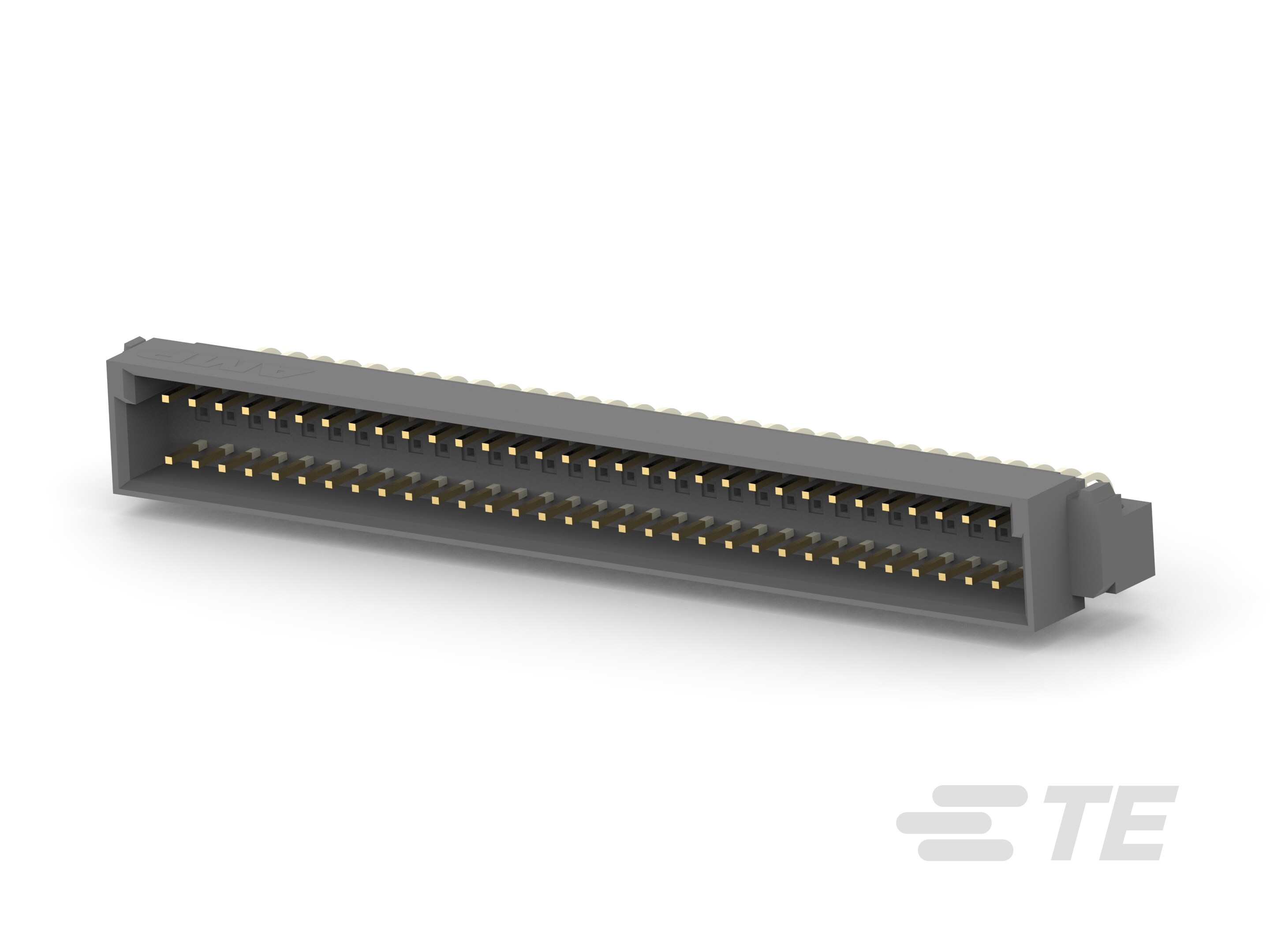

CONN DIN 41612 M 64 POS 2.54MM SOLDER RA THRU-HOLE BOX
5650951-5
ActiveTE Connectivity AMP Connectors
CONN DIN 41612 M 64 POS 2.54MM SOLDER RA THRU-HOLE BOX
Description
General part information
5650951-5
Plug, Board-to-Board, 64 Position, 2.54 mm [.1 in] Centerline, Printed Circuit Board, 3 Row, Right Angle, 32 Column, Eurocard Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 5650951-5 |
|---|---|
| Connector Type | Male Pins, Plug |
| Contact Finish | Gold |
| Level, Class | 2 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 96 |
| Number of Positions Loaded | 64 |
| Number of Rows | 3 |
| Pitch | 0.1 in |
| Style | C |
| Termination | Solder |
