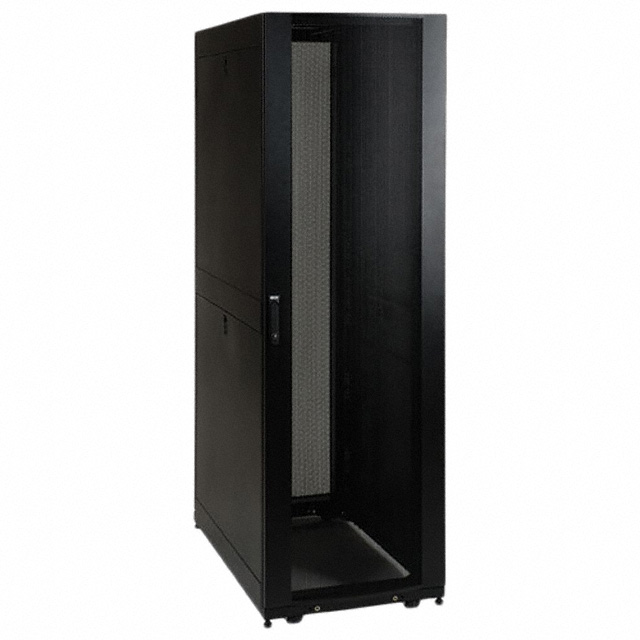

SR48UB
ActiveEaton Tripp Lite
RACK CABINET, 19 INCH, STANDARD DEPTH, SERVER, 48U, 89 ", 23.6 ", 43 "
SR48UB
ActiveEaton Tripp Lite
RACK CABINET, 19 INCH, STANDARD DEPTH, SERVER, 48U, 89 ", 23.6 ", 43 "
Description
General part information
SR48UB
Metal, Steel Cabinet Rack Enclosed, Bottom, Front, Sides, Top 43.000" L x 23.630" W x 89.000" H (1092.20mm x 600.20mm x 2260.60mm) Black
Technical Specifications
Parameters and characteristics for this part
| Specification | SR48UB |
|---|---|
| Color | Black |
| Dimensions - Overall Height | 89 " |
| Dimensions - Overall Length | 43 " |
| Dimensions - Overall Width | 23.63 in |
| Door | Steel |
| Features | Locking, Removable Sides, Cable Entry Systems |
| Material | Metal, Steel |
| Mounting Rails | Two Pair |
| Number of Units | 48 U |
| Panel Height | 84 in |
| Panel Length | 37 in |
| Shipping Info | Drop shipped from the Manufacturer's Warehouse |
| Style | Top, Front, Enclosed, Sides, Bottom |
| Type | Cabinet Rack |
| Ventilation | Back, Top, Front |
| Weight | 309 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
