9451WB 010U1000

Active

Belden Inc.

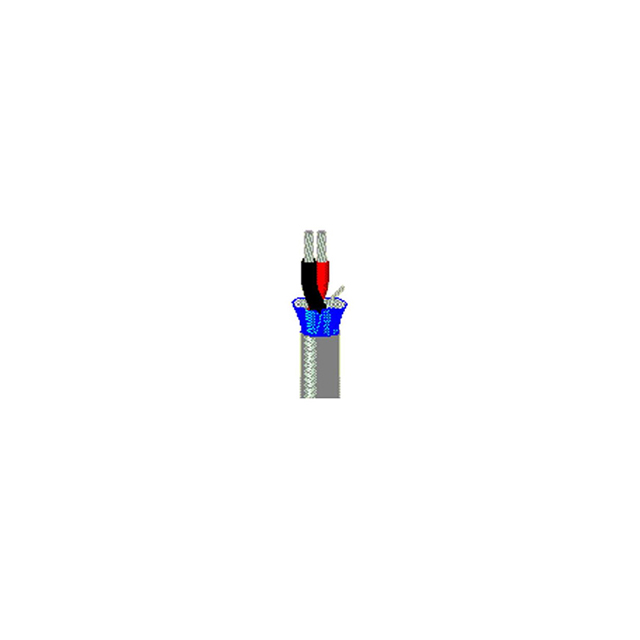

CABLE 2COND 22AWG BLACK SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 22AWG BLACK SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	9451WB 010U1000

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.165 in
Jacket (Insulation) Diameter [diameter]	4.19 mm
Jacket (Insulation) Material	Polyethylene (PE)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Polyester, Aluminum
Shield Type	Foil
Usage	Audio
Voltage	300 V
Wire Gauge	22 AWG

Part	Usage	Length	Length	Number of Conductors	Jacket (Insulation) Material	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Coverage	Voltage	Cable Type	Shield Type	Wire Gauge	Conductor Material	Conductor Insulation	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]
Belden Inc. 9451WB 010U1000	Audio	1000 ft	304.8 m	2	Polyethylene (PE)	Aluminum Polyester	0.02 in	0.508 mm	100 %	300 V	Multi-Conductor	Foil	22 AWG	Copper Tinned	Polypropylene (PP)	Black	-20 C	60 °C	0.165 in	4.19 mm	7	30 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.77

General part information

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Black 22 AWG Foil 1000.0' (304.8m)
