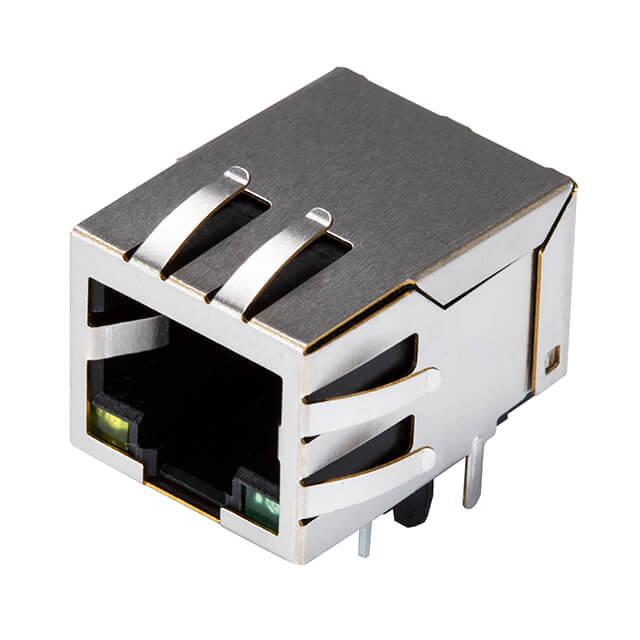

CRJ009-ML4-TH
ActiveSame Sky (Formerly CUI Devices)
RJ JACK, 1 PORT, 8P8C, 50U, SHEI
CRJ009-ML4-TH
ActiveSame Sky (Formerly CUI Devices)
RJ JACK, 1 PORT, 8P8C, 50U, SHEI
Description
General part information
CRJ009-ML4-TH
1 Port RJ45Through Hole 10/100/1000 Base-T
Technical Specifications
Parameters and characteristics for this part
| Specification | CRJ009-ML4-TH |
|---|---|
| Applications | 10/100/1000 Base-T |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Material | Phosphor Bronze |
| Features | Board Lock |
| Height Above Board | 0.535 in |
| Housing Material | Nylon 6/6, Polyamide, PA66 |
| LED Color | Yellow - Green |
| Mounting Type | Through Hole |
| Number of Cores per Jack | 8 |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Orientation Angle | 90 ° |
| Orientation Direction | Right |
| Shield Material | Brass |
| Shielding | EMI Finger, Shielded |
| Tab Direction | Down |
| Termination | Solder |
