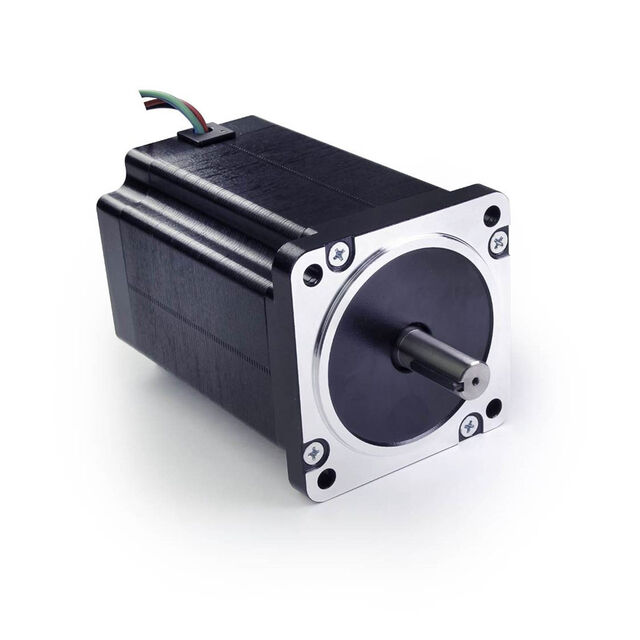

STEPPER MOTOR - NEMA 34
X8718-126-50-RO
ActiveLin Engineering
STEPPER MOTOR - NEMA 34
Description
General part information
X8718-126-50-RO
Bipolar Stepper Motor Hybrid Frame Size 34 200.0 Step 5 A 48VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | X8718-126-50-RO |
|---|---|
| Coil Resistance | 0.72 Ohms |
| Coil Type | Bipolar |
| Current Rating | 5 A |
| Diameter - Shaft | 0.315 in |
| Features | Shaft Key Included |
| Length - Shaft and Bearing | 1.25 in |
| Mounting Hole Spacing | 2.74 in |
| NEMA Frame Size | 34 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -20 °C |
| Rotor Inertia | 2200 gcm² |
| Size / Dimension Length | 3.38 in |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 3.38 in |
| Step Angle | 1.8 ° |
| Steps per Revolution | 200 steps |
| Termination Style | Wire Leads |
| Torque - Holding (mNm) | 12300 mNm |
| Torque - Holding (oz-in) | 1741.8 oz-in |
| Type | Hybrid |
| Voltage - Rated | 48 VDC |
