Description
General part information
LGG2W681MELC50

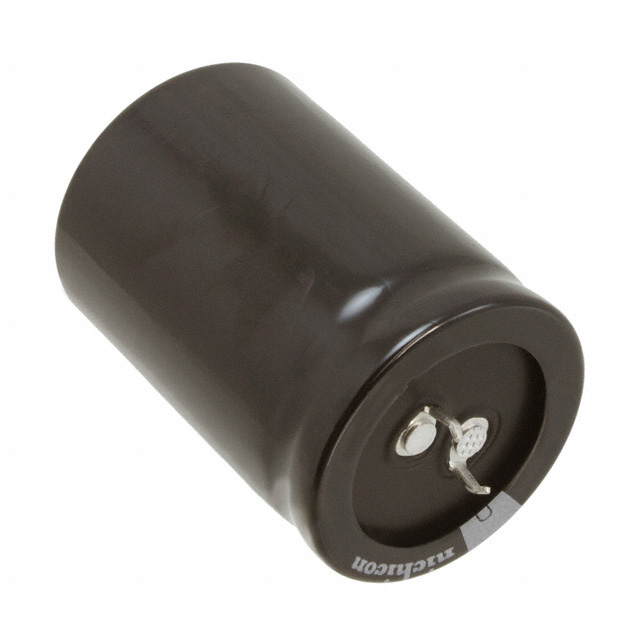

680 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | LGG2W681MELC50 |
|---|---|
| Applications | General Purpose |
| Capacitance | 680 µF |
| Height - Seated (Max) | 2.047 in |
| Lead Spacing | 0.394 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can - Snap-In, Radial |
| Polarization | Polar |
| Ripple Current | 1.91 A, 2.7313 A |
| Size / Dimension Diameter | 1.378 in |
| Tolerance | 20 % |
| Voltage - Rated | 450 V |
