Description
General part information
EBTM-6-10-2.0-S-VT-1

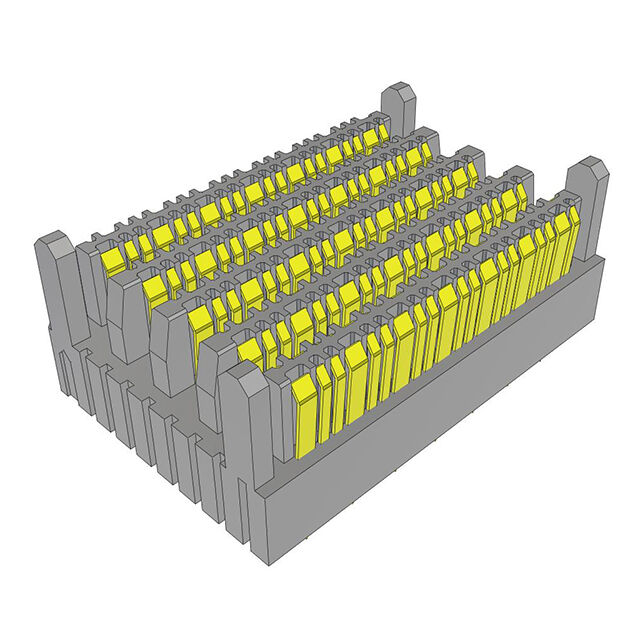

120 Connector Header, Male Blades Through Hole Black ExaMax®
Technical Specifications
Parameters and characteristics for this part
| Specification | EBTM-6-10-2.0-S-VT-1 |
|---|---|
| Color | Black |
| Connector Style | ExaMax® |
| Connector Type | Male Blades, Header |
| Connector Usage | Backplane |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Current Rating (Per Contact) | 4.2 A |
| Features | Board Guide |
| Mounting Type | Through Hole |
| Number of Columns | 10 |
| Number of Positions | 120 |
| Number of Positions Loaded | All |
| Number of Rows | 12 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.079 in |
| Termination | Press-Fit |
| Voltage Rating | 280 VAC |
