601XR-60-S

Active

E-Z-Hook

TEST LEAD BANANA/GRAB 60" SET/10

Search across all available documentation for this part.

Active

E-Z-Hook

TEST LEAD BANANA/GRAB 60" SET/10

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

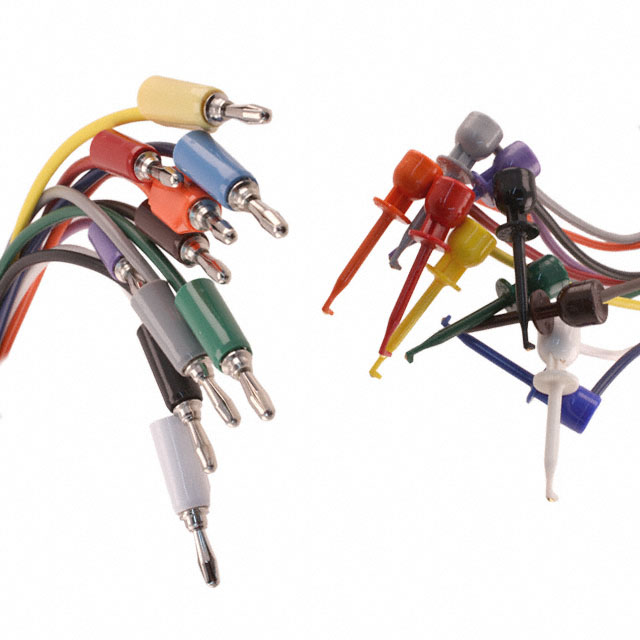

60.0" (1524.00mm) Banana Plug, Single, Stackable To Mini Hook Patch Cord 5000V (5kV)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	601XR-60-S	601XR Series

1st Connector	Single, Stackable, Banana Plug	Single, Stackable, Banana Plug
2nd Connector	Mini Hook	Mini Hook
Cable Length	1524 mm	457.2 - 1524 mm
Cable Length	5 ft	5 - 36 in
Configuration	Banana to Grabber, Hook	Banana to Grabber, Hook
Contents	Multiple Colors	Multiple Colors, Red, 1 Lead, Black
Contents	10 Leads	10 Leads
Contents	-	1
Current Rating (Amps)	4 A	4 A
Material - Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Stacking Method	Front Stacking	Front Stacking
Type	Patch Cord	Patch Cord
Voltage - Rated	5 kV	5 kV
Voltage - Rated	5 kV	5 kV
Wire Gauge	18 AWG	18 AWG

TEST LEAD BANANA/GRAB 18" SET/10

Part	Configuration	Contents	Contents	1st Connector	Wire Gauge	Stacking Method	Voltage - Rated	Voltage - Rated	Current Rating (Amps)	Cable Length	Cable Length	Type	Material - Insulation	2nd Connector	Contents [custom]
E-Z-Hook 601XR-18-S	Banana to Grabber, Hook	Multiple Colors	10 Leads	Banana Plug, Single, Stackable	18 AWG	Front Stacking	5 kV	5 kV	4 A	457.2 mm	18 in	Patch Cord	Poly-Vinyl Chloride (PVC)	Mini Hook
E-Z-Hook 601XR-18 RED	Banana to Grabber, Hook	Red		Banana Plug, Single, Stackable	18 AWG	Front Stacking	5 kV	5 kV	4 A	457.2 mm	18 in	Patch Cord	Poly-Vinyl Chloride (PVC)	Mini Hook	1
E-Z-Hook 601XR-36RED	Banana to Grabber, Hook	Red		Banana Plug, Single, Stackable	18 AWG	Front Stacking	5 kV	5 kV	4 A	914.4 mm	36 in	Patch Cord	Poly-Vinyl Chloride (PVC)	Mini Hook	1
E-Z-Hook 601XR-60-S	Banana to Grabber, Hook	Multiple Colors	10 Leads	Banana Plug, Single, Stackable	18 AWG	Front Stacking	5 kV	5 kV	4 A	1524 mm	5 ft	Patch Cord	Poly-Vinyl Chloride (PVC)	Mini Hook
E-Z-Hook 601XR-60BLK	Banana to Grabber, Hook	1 Lead, Black		Banana Plug, Single, Stackable	18 AWG	Front Stacking	5 kV	5 kV	4 A	1524 mm	5 ft	Patch Cord	Poly-Vinyl Chloride (PVC)	Mini Hook
E-Z-Hook 601XR-36BLK	Banana to Grabber, Hook	1 Lead, Black		Banana Plug, Single, Stackable	18 AWG	Front Stacking	5 kV	5 kV	4 A	914.4 mm	36 in	Patch Cord	Poly-Vinyl Chloride (PVC)	Mini Hook
