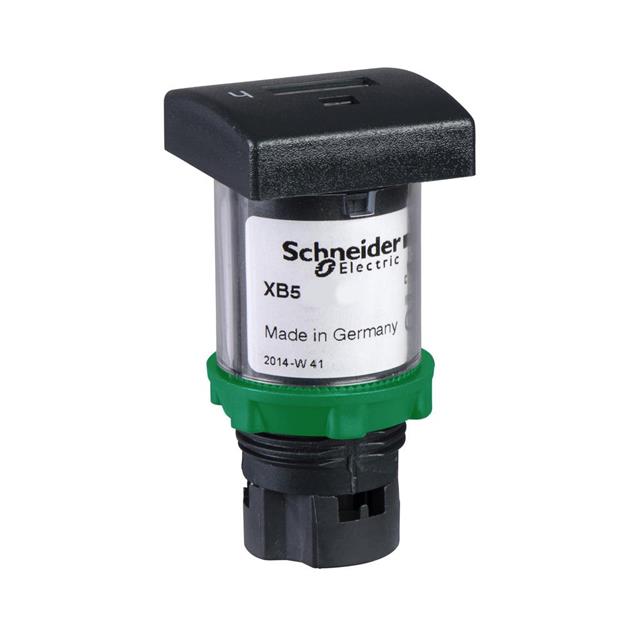

XB5DSG
ActiveSCHNEIDER ELECTRIC
HOUR COUNTER 120 VAC ROHS COMPLIANT: YES
XB5DSG
ActiveSCHNEIDER ELECTRIC
HOUR COUNTER 120 VAC ROHS COMPLIANT: YES
Description
General part information
XB5DSG
Time Counter 120VAC Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | XB5DSG |
|---|---|
| Ingress Protection Description | NEMA 4X, Water Resistant, Dust Tight, 13 |
| Ingress Protection IP Rating | IP66 |
| Input Type | Voltage |
| Mounting Type | Panel Mount |
| Number of Characters Per Row | 5 characters |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Reset | External |
| Termination Style | Connector |
| Type | Time Counter |
| Voltage - Supply | 120 VAC |
