Description
General part information

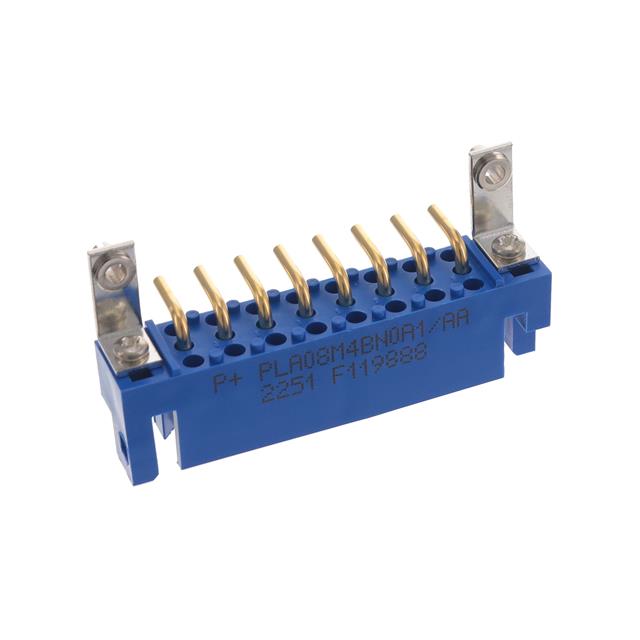

PLA08M4BN0A1/AA
8 Connector Header, Male Pins Through Hole, Right Angle Blue Power
Technical Specifications
Parameters and characteristics for this part
| Specification | PLA08M4BN0A1/AA |
|---|---|
| Color | Blue |
| Connector Style | Power |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 0 |
| Contact Finish Thickness | Flash |
| Contact Finish Thickness (string set options) | Flash |
| Features | Board Lock |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.197 in |
| Termination | Solder |
| Voltage Rating | 600 V |
