OSD100M160
ActiveEaton - Electronics Division

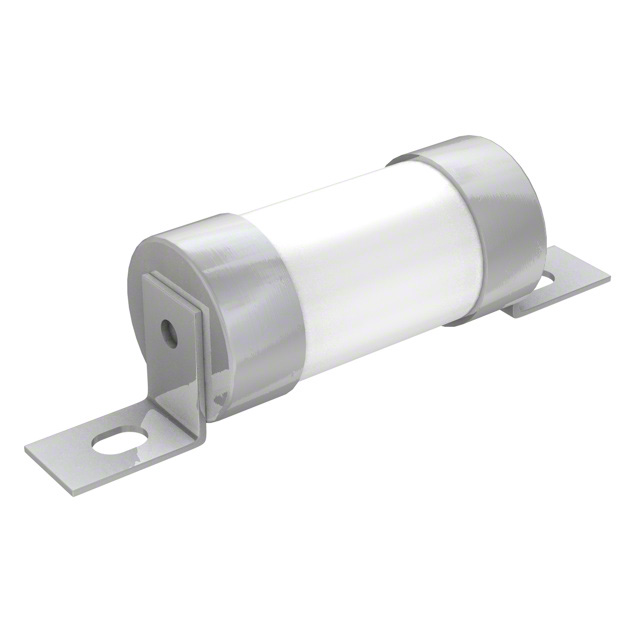

FUSE CRTRDGE 160A 415VAC CYLINDR
OSD100M160
ActiveEaton - Electronics Division
FUSE CRTRDGE 160A 415VAC CYLINDR
Description
General part information
OSD100M160
160A 415 VAC Fuse Cartridge Bolt Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | OSD100M160 |
|---|---|
| Applications | Electrical, Industrial |
| Breaking Capacity | 80 kA |
| Current Rating | 160 A |
| Fuse Type | Cartridge |
| Melting I²t | 72500 |
| Mounting Type | Bolt Mount |
| Package / Case | Blade Terminal (Bolt), Cylindrical |
| Size / Dimension Diameter | 1.012 in |
| Size / Dimension Length | 2.126 in |
| Voltage Rating - AC | 415 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
