TMC8461-EVAL
ActiveAnalog Devices Inc./Maxim Integrated
ETHERNET DEVELOPMENT TOOLS EVALU
Deep-Dive with AI
Search across all available documentation for this part.
TMC8461-EVAL
ActiveAnalog Devices Inc./Maxim Integrated
ETHERNET DEVELOPMENT TOOLS EVALU
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMC8461-EVAL | TMC8461 Series |
|---|---|---|
| Function | Ethernet | Ethernet, Controller |
| Interface | - | SPI, I2C, MII |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 125 ¯C |
| Package / Case | - | 144-VFBGA |
| Primary Attributes | EtherCAT Slave Controller | EtherCAT Slave Controller |
| Protocol | - | Ethernet |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 144-BGA (10x10) |
| Type | Interface | Interface |
| Utilized IC / Part | TMC8461 | TMC8461 |
| Voltage - Supply | - | 1.95 - 34 V |
| Voltage - Supply | - | 1.65 - 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 151.36 | |
TMC8461 Series
ETHERNET DEVELOPMENT TOOLS EVALU
| Part | Supplied Contents | Type | Function | Utilized IC / Part | Primary Attributes | Voltage - Supply [Max] | Voltage - Supply [Min] | Interface | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Protocol | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMC8461-EVAL | Board(s) | Interface | Ethernet | TMC8461 | EtherCAT Slave Controller | ||||||||
Analog Devices Inc./Maxim Integrated TMC8461-BA | Controller | 1.95 V, 3.45 V, 34 VDC | 1.65 V, 3.15 V, 4.75 V | I2C, MII, SPI | 144-VFBGA | -40 °C | 125 ¯C | Ethernet | 144-BGA (10x10) |
Description
General part information
TMC8461 Series

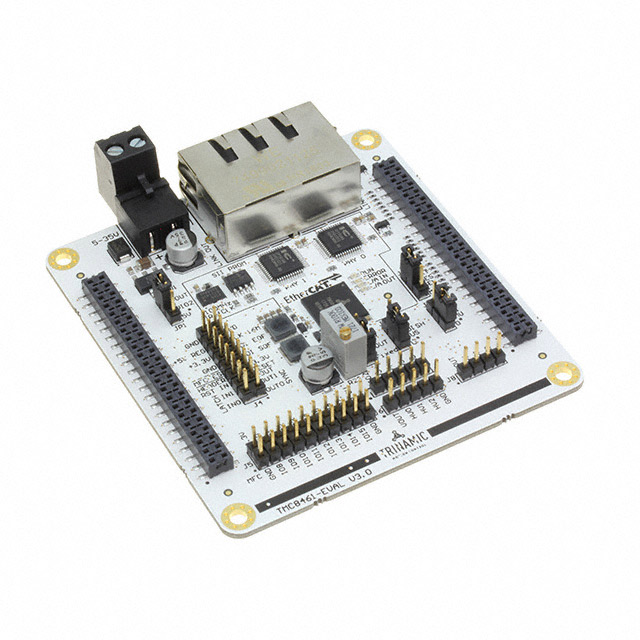

TMC8461 Ethernet Interface Evaluation Board
Documents
Technical documentation and resources
No documents available
