CA4NMLPNF020
ActivePasternack
COAX CBL N-TYPE TO N-TYPE 20'
CA4NMLPNF020
ActivePasternack
COAX CBL N-TYPE TO N-TYPE 20'
Description
General part information
CA4NMLPNF020

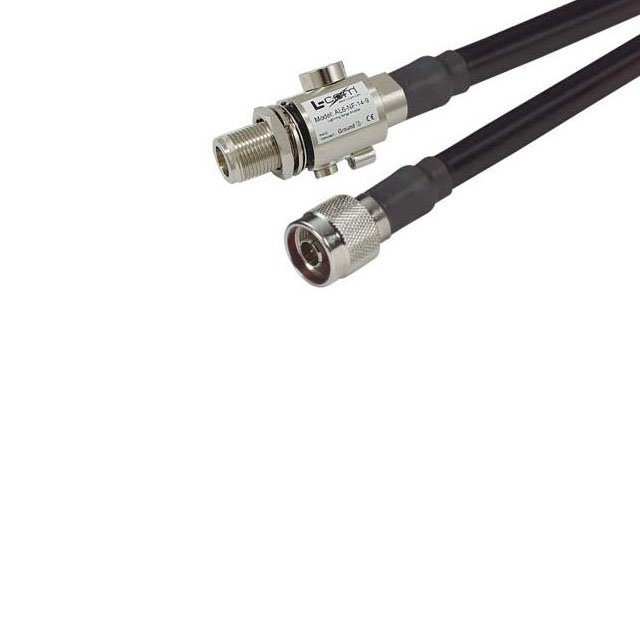

Cable Assembly Coaxial N-Type to N-Type LMR 400 240.0" (6.1m) 20.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | CA4NMLPNF020 |
|---|---|
| 1st Connector | N-Type Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR |
| Cable Type Size | 400 |
| Color | Black |
| Length | 240 in |
| Overall Impedance | 50 Ohms |
| Style | N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
