152892
ActiveTE Connectivity AMP Connectors
SIZE 20 PIDG R/T NO.10 NYLON
152892
ActiveTE Connectivity AMP Connectors
SIZE 20 PIDG R/T NO.10 NYLON
Description
General part information
152892

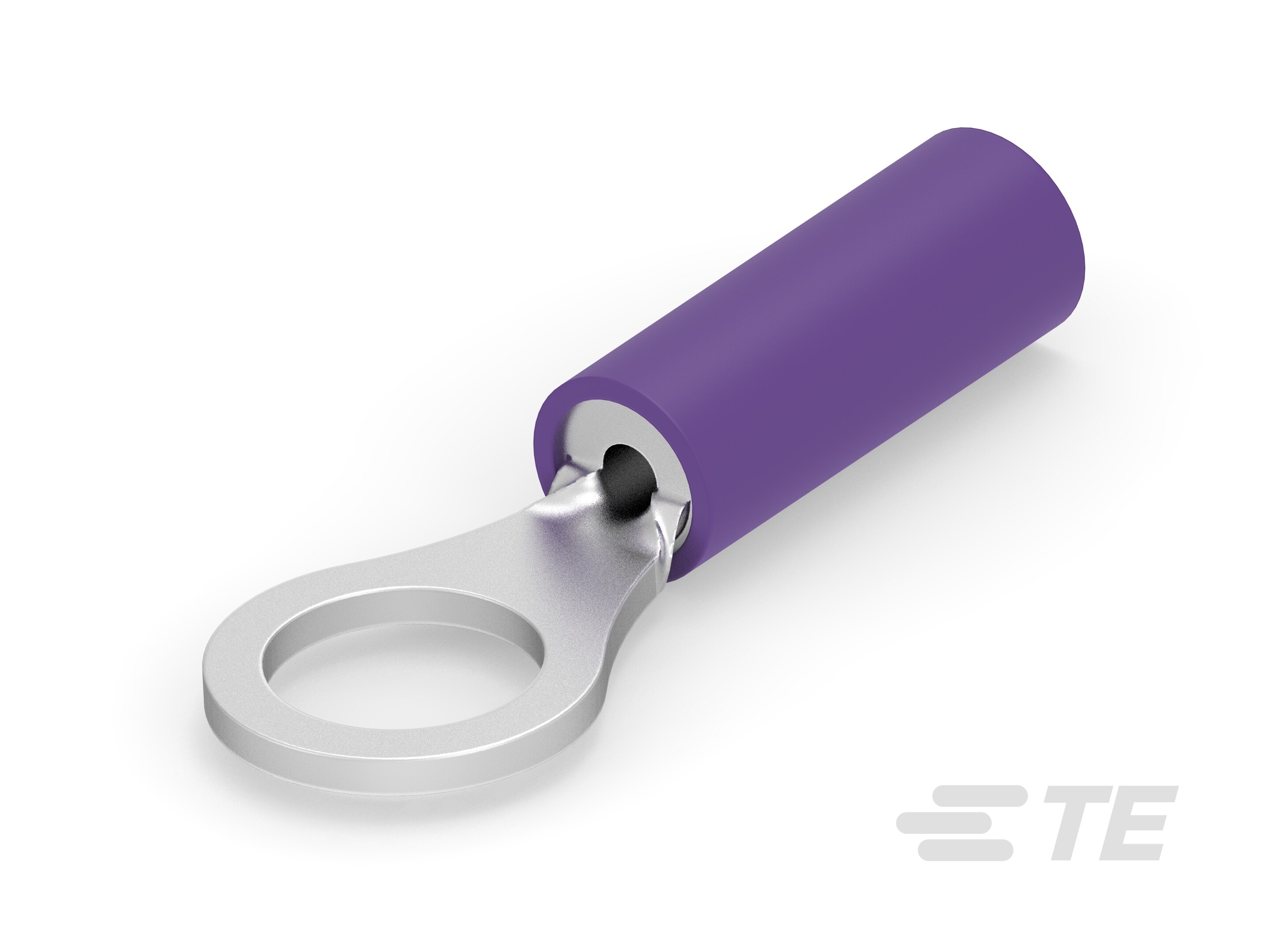

Closed Ring Tongue Terminal, 20 AWG, M5 Stud, 5 mm [.197 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Partially Insulated, PIDG
Technical Specifications
Parameters and characteristics for this part
| Specification | 152892 |
|---|---|
| Color | Purple |
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Serrated Termination |
| Insulation | Insulated |
| Length - Overall | 0.787 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 10 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.031 in |
| Width - Outer Edges | 0.281 in |
| Wire Gauge | 20 AWG |
