Description
General part information

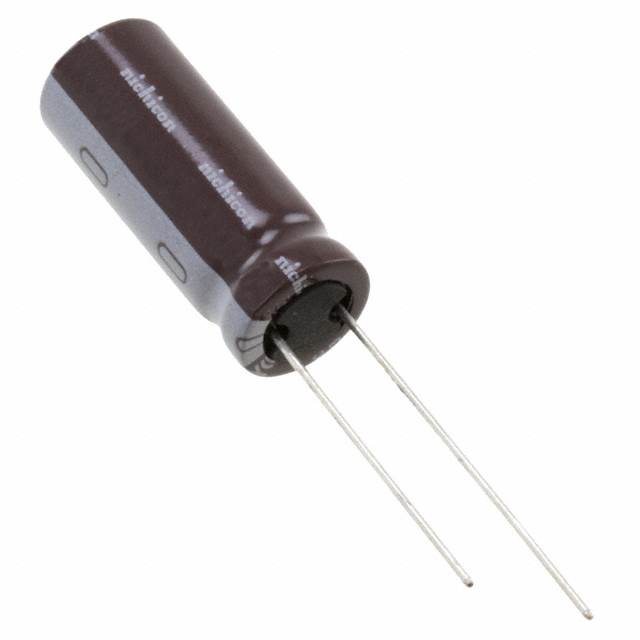

UCY2C820MPD9TD
82 µF 160 V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UCY2C820MPD9TD |
|---|---|
| Applications | General Purpose |
| Capacitance | 82 µF |
| Height - Seated (Max) | 1.043 in |
| Lead Spacing | 0.197 in |
| Lifetime | 12000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 455 mA, 910 mA |
| Size / Dimension Diameter | 0.394 in |
| Tolerance | 20 % |
| Voltage - Rated | 160 V |
