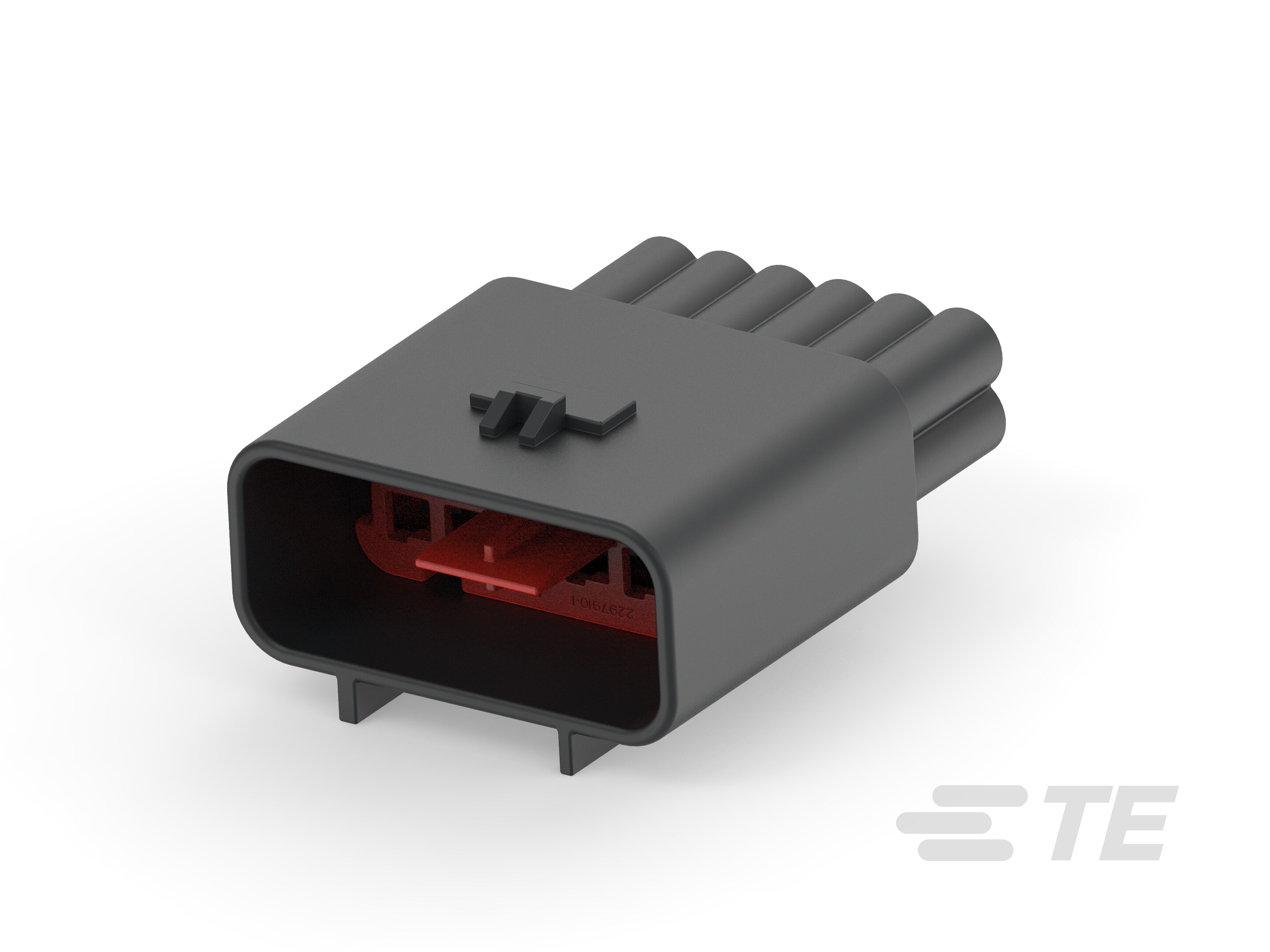

12 WAY IN-LINE TAB PLUG ASSY-2297911-1

2297911-1

Active
TE Connectivity AMP Connectors

12 WAY IN-LINE TAB PLUG ASSY

Find alt
12 WAY IN-LINE TAB PLUG ASSY-2297911-1

2297911-1

Active
TE Connectivity AMP Connectors

12 WAY IN-LINE TAB PLUG ASSY

Find alt

Description

General part information

2297911-1

12 Position Housing, Housing for Male Terminals, Wire-to-Wire, 4.5 mm [.177 in] Centerline, Sealable, Black, Wire & Cable, Power

Technical Specifications

Parameters and characteristics for this part

Specification2297911-1
ColorBlack
Connector TypePlug
Contact TerminationCrimp
Contact TypeTab
Fastening TypeLocking Ramp
FeaturesSealed
Insulation MaterialPolybutylene Terephthalate (PBT), Glass Filled
Mounting TypeFree Hanging (In-Line)
Number of Positions12
Number of Rows2
Operating Temperature (Max)125 °C
Operating Temperature (Min)-40 °C
Pitch0.177 in
