NTCALUG02A103F800L
ActiveVishay Dale
NTC LUG02 10K 1% 3435K E4 PEEK AWG#30 80
NTCALUG02A103F800L
ActiveVishay Dale
NTC LUG02 10K 1% 3435K E4 PEEK AWG#30 80
Description
General part information
NTCALUG02A103F800L

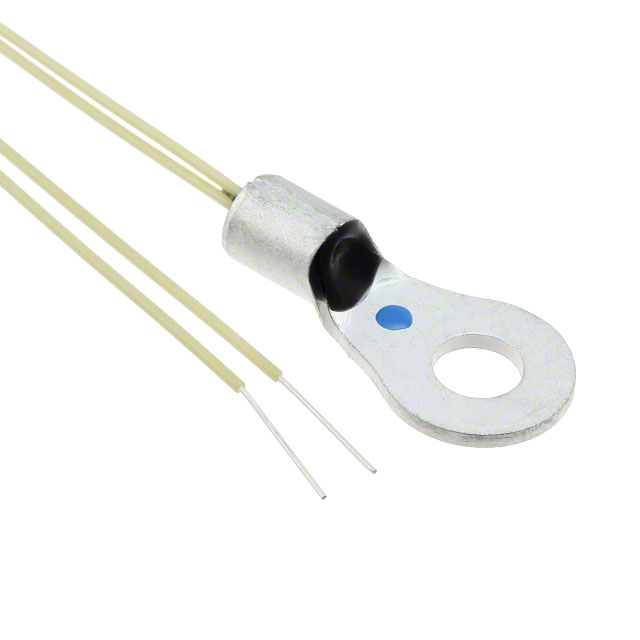

NTC Thermistor 10k Ring Lug
Technical Specifications
Parameters and characteristics for this part
| Specification | NTCALUG02A103F800L |
|---|---|
| B Value (25/85) | 3435 K |
| B Value Tolerance | 1 % |
| Grade | Automotive |
| Length - Lead Wire | 3.15 in |
| Mounting Type | Free Hanging |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Ring Lug |
| Power - Max | 100 mW |
| Qualification | AEC-Q200 |
| Resistance (Ohms) | 10 kOhm |
| Resistance Tolerance (%) | 1 % |
