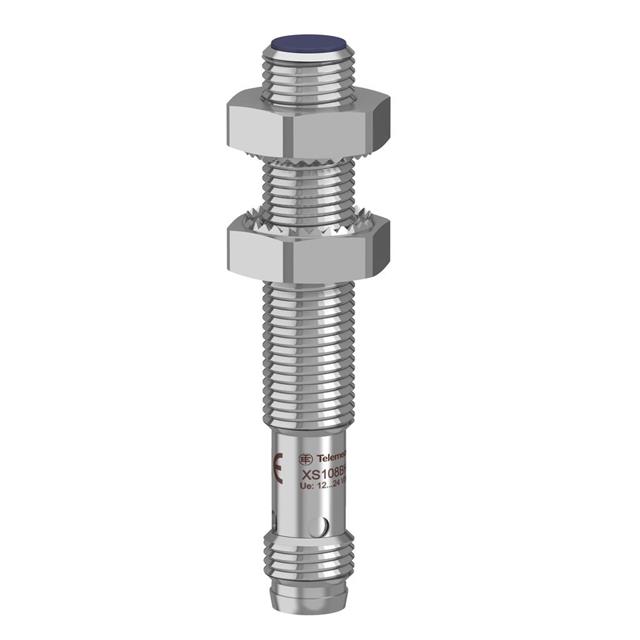

XS108BLPAM8
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, CYLINDRICAL, OSISENSE XS, M8, 1.5 MM, PNP-NO, 12 TO 24 VDC, M8 CONNECTOR
XS108BLPAM8
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, CYLINDRICAL, OSISENSE XS, M8, 1.5 MM, PNP-NO, 12 TO 24 VDC, M8 CONNECTOR
Description
General part information
XS108BLPAM8
Inductive Proximity Sensor 0.059" (1.5mm) IP67 Cylinder, Threaded - M8
Technical Specifications
Parameters and characteristics for this part
| Specification | XS108BLPAM8 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | PNP-NO, 3-Wire |
| Package / Case | Cylinder, Threaded - M8 |
| Sensing Distance | 0.059 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
