PCIS60-470M-RC
ActiveAllied Components International

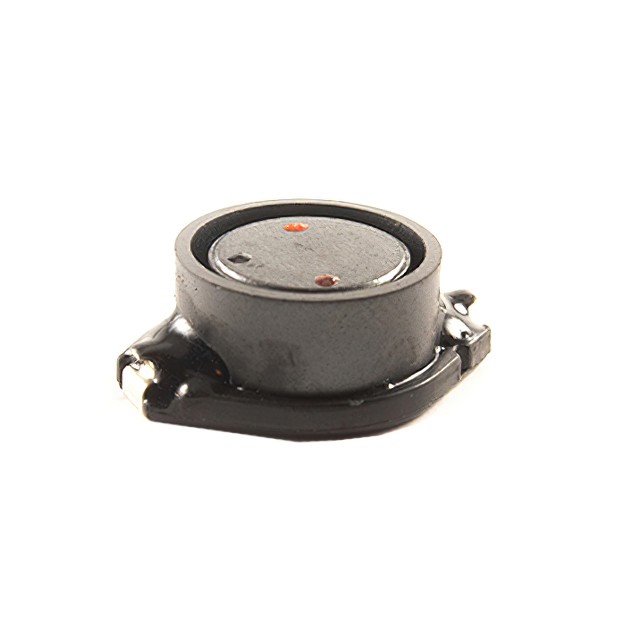

47UH +/-20% POWER CHIP INDUCTOR
PCIS60-470M-RC
ActiveAllied Components International
47UH +/-20% POWER CHIP INDUCTOR
Description
General part information
PCIS60-470M-RC
47 µH Shielded Inductor 2.4 A 97mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PCIS60-470M-RC |
|---|---|
| Current - Saturation (Isat) | 2.7 A |
| Current Rating | 2.4 A |
| DC Resistance (DCR) (Max) | 97 mOhm |
| Height - Seated (Max) | 0.3 in |
| Inductance | 47 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.73 in |
| Size / Dimension Width | 0.6 in |
| Tolerance | 20 % |
