FODLCOM2MIL-10
ActivePasternack
LC-LC OM2 ZIP TPUR BLK MIL 10M
FODLCOM2MIL-10
ActivePasternack
LC-LC OM2 ZIP TPUR BLK MIL 10M
Description
General part information
FODLCOM2MIL-10

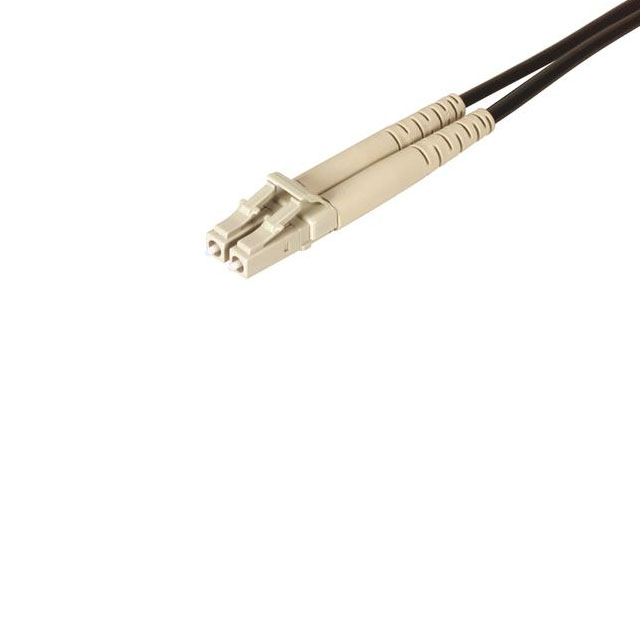

Cable Fiber Optic LC Duplex To LC Duplex 50/125 32.8' (10.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | FODLCOM2MIL-10 |
|---|---|
| 1st Connector | LC Duplex |
| 2nd Connector | LC Duplex |
| Bend Radius | 50 mm |
| Cable Diameter | 0.12 " |
| Color - Cable | Black |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter | 50 µm |
| Insertion Loss | 0.5 dB |
| Jacket (Insulation) Material | Polyurethane (PUR) |
| Length - Overall | 32.8 ft |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Type | OM2, Multimode, Duplex |
