Description
General part information

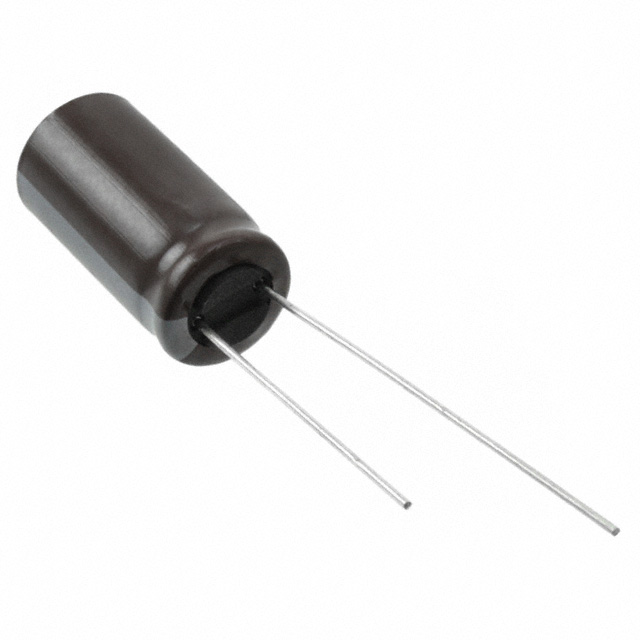

ESRG350ELL102ML15S
CAP ALUM 1000UF 20% 35V RADIAL
Technical Specifications
Parameters and characteristics for this part
| Specification | ESRG350ELL102ML15S |
|---|---|
| Applications | General Purpose |
| Capacitance | 1000 µF |
| Height - Seated (Max) | 16.51 mm |
| Lead Spacing | 0.295 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 1.515 A, 1.01 A |
| Size / Dimension Diameter | 0.63 in |
| Tolerance | 20 % |
| Voltage - Rated | 35 V |
