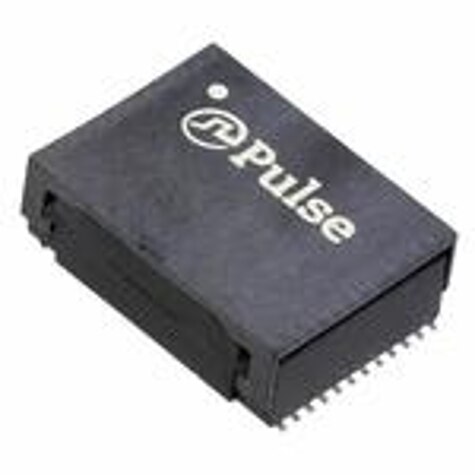

HX5008FNL
ActivePulse Electronics
AUDIO TRANSFORMERS / SIGNAL TRANSFORMERS 1000BASET SMD NONPOE 325UH 1-PORT
HX5008FNL
ActivePulse Electronics
AUDIO TRANSFORMERS / SIGNAL TRANSFORMERS 1000BASET SMD NONPOE 325UH 1-PORT
Description
General part information
HX5008FNL
AUDIO TRANSFORMERS / SIGNAL TRANSFORMERS 1000BASET SMD NONPOE 325UH 1-PORT
Technical Specifications
Parameters and characteristics for this part
| Specification | HX5008FNL |
|---|---|
| Height - Seated (Max) | 0.241 in |
| Inductance | 325 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Size / Dimension Length | 0.518 in |
| Size / Dimension Width | 0.703 in |
| Transformer Type | LAN 10, 1000 Base-T, 100 |
| Turns Ratio - Primary (Receiver) | 1 CT |
| Turns Ratio - Primary (Transmitter) | 1 CT |
| Turns Ratio - Secondary (Receiver) | 1 |
| Turns Ratio - Secondary (Transmitter) | 1 CT |
| Turns Ratio Mode | Receiver, Transmitter |
