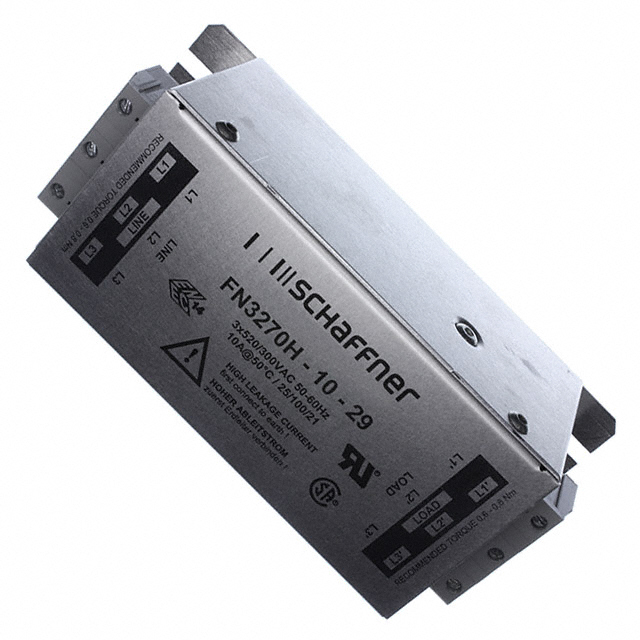

Specification	FN3270H-10-29

Applications	Inverters, Power Drive Systems
Approval Agency	CSA, ENEC, UR
Configuration	Single Stage
Current	10 A
Filter Subtype	Delta
Filter Type	Three Phase
Frequency - Operating (Max)	60 Hz
Frequency - Operating (Min)	0 Hz
Mounting Type	Chassis Mount
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-25 °C
Termination Style	Terminal Block
Voltage - Rated AC	480 V
Voltage - Rated AC (Phase to Ground/Neutral)	300 V
Voltage - Rated AC (Phase to Phase)	520 V

Schaffner FN3270 Series

Part	Current	Frequency - Operating (Max)	Filter Subtype	Filter Type	Approval Agency	Voltage - Rated AC (Phase to Phase)	Voltage - Rated AC	Mounting Type	Applications	Termination Style	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Rated AC (Phase to Ground/Neutral)	Configuration
TE Connectivity AMP Connectors FN3270H-50-34	50 A	60 Hz	Delta	Three Phase	CSA ENEC UR	520 V	480 V	Chassis Mount	Inverters Power Drive Systems	Terminal Block	-25 °C	100 °C	300 V	Single Stage
TE Connectivity AMP Connectors FN3270H-65-34	65 A	60 Hz	Delta	Three Phase	CSA ENEC UR	520 V	480 V	Chassis Mount	Inverters Power Drive Systems	Terminal Block	-25 °C	100 °C	300 V	Single Stage
TE Connectivity AMP Connectors FN3270H-100-35	100 A	60 Hz	Delta	Three Phase	CSA ENEC UR	520 V		Chassis Mount	Inverters Power Drive Systems	Terminal Block	-25 °C	100 °C	300 V	Three Stage
TE Connectivity AMP Connectors FN3270H-10-44	10 A	60 Hz	Delta	Three Phase	CSA ENEC UR	520 V	480 V	Chassis Mount	Inverters Power Drive Systems	Terminal Block	-25 °C	100 °C	300 V	Single Stage
TE Connectivity AMP Connectors FN3270HQ1-100-35	100 A	60 Hz	Delta	Three Phase	CE ENEC UKCA UR	520 V		Chassis Mount	Inverters Power Drive Systems	Terminal Post	-25 °C	100 °C	300 V	Single Stage
TE Connectivity AMP Connectors FN3270HQ1-320-99	320 A	60 Hz	Delta	Three Phase	CE ENEC UKCA UR	520 V		Chassis Mount	Inverters Power Drive Systems	Terminal Post	-25 °C	100 °C	300 V	Single Stage
TE Connectivity AMP Connectors FN3270H-200-99	200 A	60 Hz	Delta	Three Phase	CSA ENEC UR	520 V		Chassis Mount	Inverters Power Drive Systems	Terminal Post	-25 °C	100 °C	300 V	Three Stage
TE Connectivity AMP Connectors FN3270H-65-34	65 A	60 Hz	Delta	Three Phase	CSA ENEC UR	520 V	480 V	Chassis Mount	Inverters Power Drive Systems	Terminal Block	-25 °C	100 °C	300 V	Single Stage
TE Connectivity AMP Connectors FN3270H-80-35	80 A	60 Hz	Delta	Three Phase	CSA ENEC UR	520 V	480 V	Chassis Mount	Inverters Power Drive Systems	Terminal Block	-25 °C	100 °C	300 V	Single Stage
TE Connectivity AMP Connectors FN3270H-800-99	800 A	60 Hz	Delta	Three Phase	CE ENEC UKCA UR	520 V		Chassis Mount	Inverters Power Drive Systems	Terminal Post	-25 °C	100 °C	300 V	Single Stage
