3-2384214-3

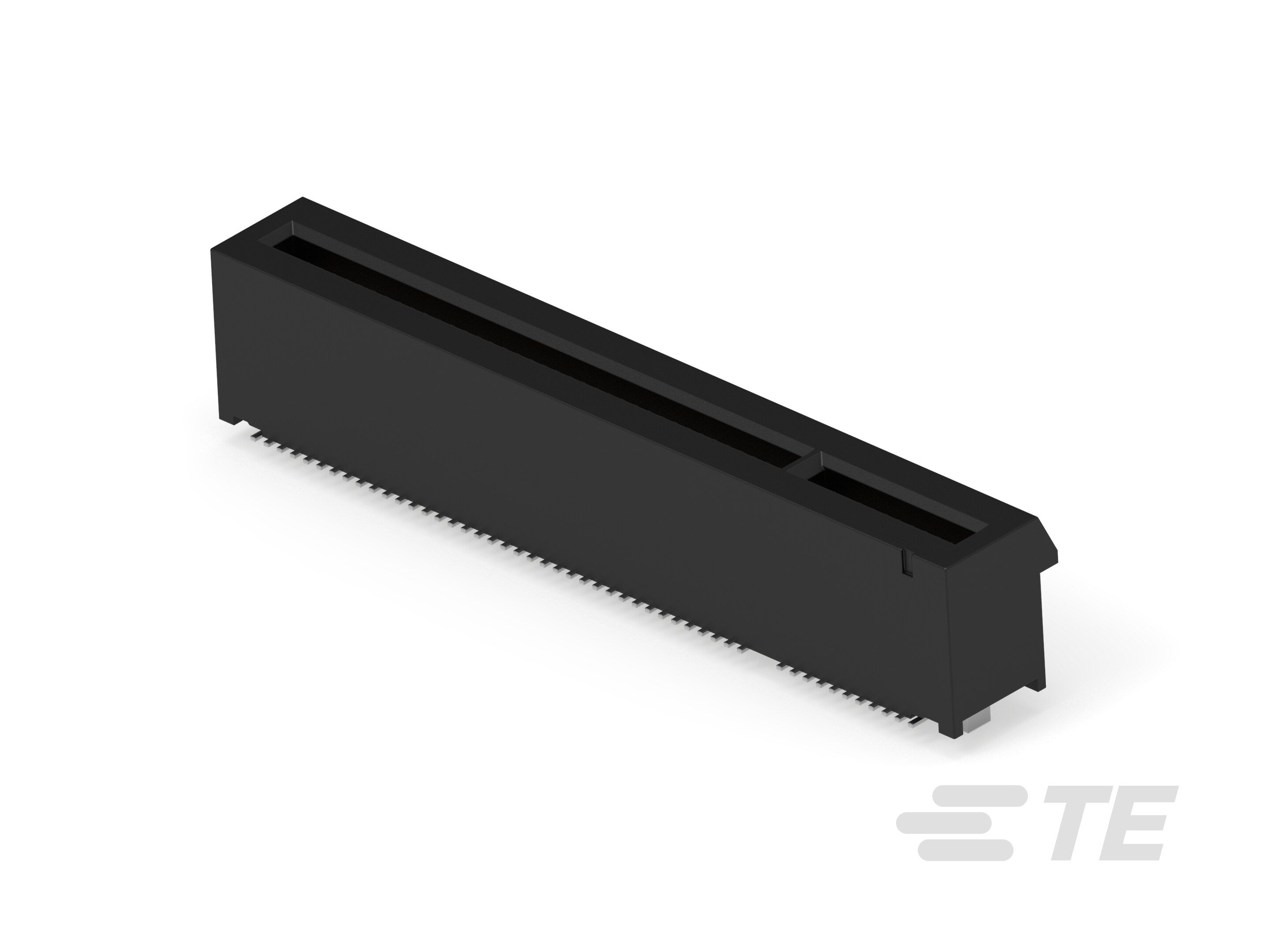

Board-to-Board, 98 Position, 1 mm [.04 in] Centerline, Vertical, Black, 11.25 mm [.44 in] Height, 8.2 mm [.32 in] Width, PCI & PCI Express Connectors

Technical Specifications

Parameters and characteristics for this part

Specification3-2384214-3
Card Thickness0.062 in
Card TypePCI Express™
ColorBlack
Contact FinishGold
Contact Finish Thickness0
Contact Finish ThicknessFlash
Contact Finish Thickness (string set options)Flash
Contact MaterialCopper Alloy
Contact TypeCantilever
FeaturesLocking Ramp, Board Guide, Solder Retention
GenderFemale
Mounting TypeSurface Mount
Number of Bay38
Number of Positions11, 98
Number of Rows2
Operating Temperature (Max)85 °C
Operating Temperature (Min)-40 °C
Pitch0.039 in
Read OutDual
TerminationSolder
