D222Z20Y5VH63L2R
ActiveVishay Dale

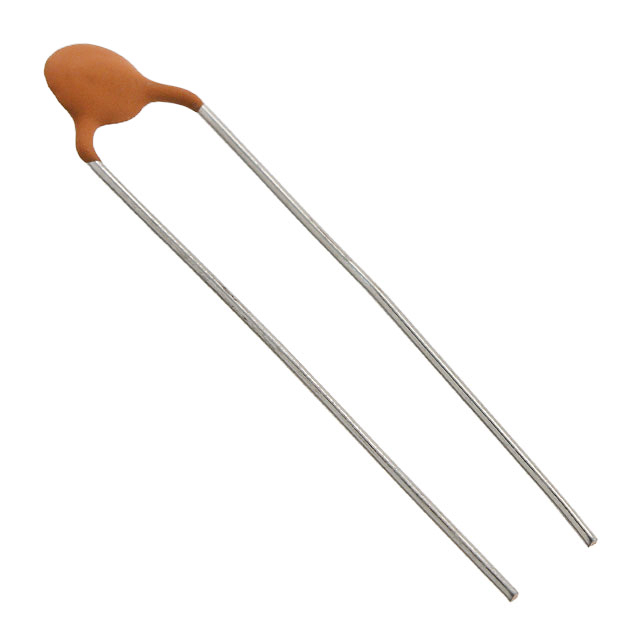

CAP CER 2200PF 100V Y5V RADIAL
D222Z20Y5VH63L2R
ActiveVishay Dale
CAP CER 2200PF 100V Y5V RADIAL
Description
General part information
D222Z20Y5VH63L2R
2200 pF -20%, +80% 100V Ceramic Capacitor Y5V (F) Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | D222Z20Y5VH63L2R |
|---|---|
| Applications | General Purpose |
| Capacitance | 2200 pF |
| Lead Spacing | 0.098 in |
| Lead Style | Straight |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -30 °C |
| Package / Case | Disc, Radial |
| Size / Dimension Diameter | 0.197 in |
| Temperature Coefficient | Y5V (F) |
| Tolerance (Negative) | 20 % |
| Tolerance (Positive) | 80 % |
| Voltage - Rated | 100 VAC/DC |
