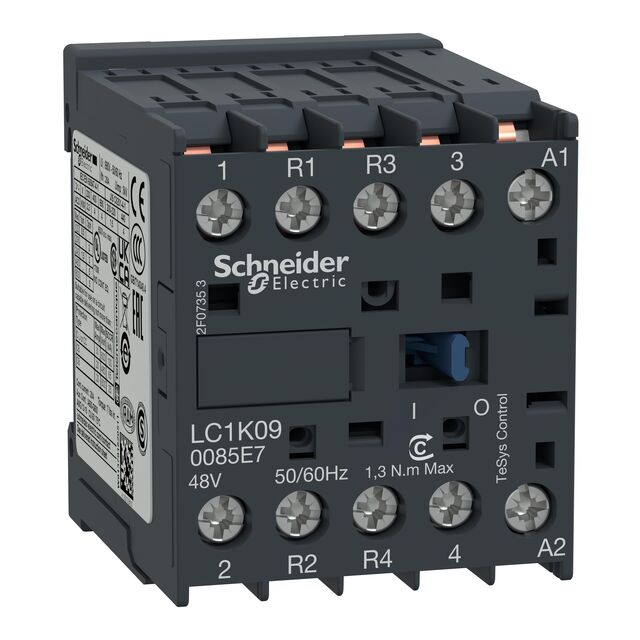

LC1K090085E7
ActiveSCHNEIDER ELECTRIC
CONTACTOR
LC1K090085E7
ActiveSCHNEIDER ELECTRIC
CONTACTOR
Description
General part information
LC1K090085E7
CONTACTOR
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1K090085E7 |
|---|---|
| Coil Voltage | 48 V |
| Contact Form | 4 Form A, PST-NO |
| Contact Rating (Current) | 20 A |
| Mounting Type | Through Hole |
| Must Operate Voltage | 38.4 V |
| Must Release Voltage | 9.6 VDC |
| Operate Time | 25 ms |
| Pin Count | 4 |
| Release Time | 20 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Termination Style | PC Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
