2314-6111-TG
Active3M

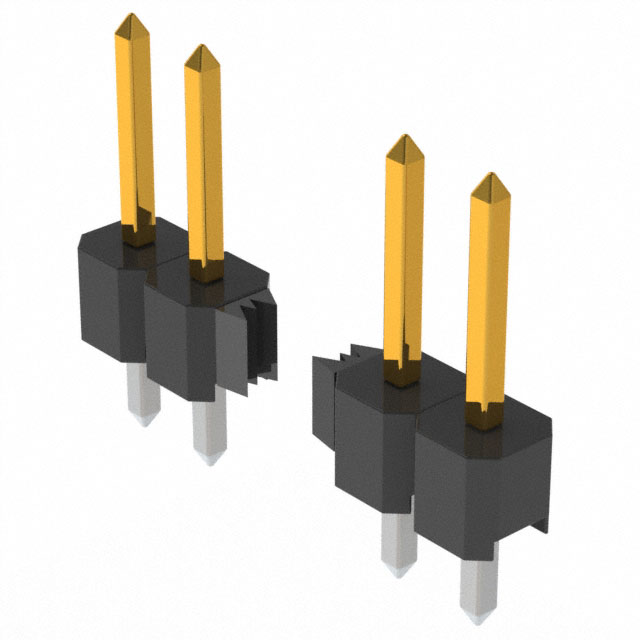

CONN HEADER VERT 14POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
2314-6111-TG
Active3M
CONN HEADER VERT 14POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2314-6111-TG | 2314 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin-Lead | Tin-Lead |
| Contact Finish Thickness - Mating | 10 çin | 10 - 30 çin |
| Contact Finish Thickness - Mating | 0.25 çm | 0.25 - 0.76 çm |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Mating | 5.84 mm | 5.84 mm |
| Contact Length - Mating | - | 8.08 mm |
| Contact Length - Mating [x] | 0.23 in | 0.23 - 0.318 in |
| Contact Length - Post | - | 2.79 mm |
| Contact Length - Post [x] | 0.12 in | 0.11 - 0.12 in |
| Contact Length - Post [x] | 3.05 mm | 3.05 mm |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 3 A | 3 A |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Black | Black |
| Insulation Height | 0.1 in | 0.1 in |
| Insulation Height | 2.54 mm | 2.54 - 6.14 mm |
| Insulation Height | - | 0.242 in |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole, Through Hole, Right Angle |
| Number of Positions | 14 | 14 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 - 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Overall Contact Length | 0.45 " | 0.45 " |
| Overall Contact Length | 11.43 mm | 11.43 mm |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Row Spacing - Mating | - | 2.54 mm |
| Row Spacing - Mating | - | 0.1 in |
| Shrouding | Unshrouded | Unshrouded |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
2314 Series
CONN HEADER VERT 14POS 2.54MM
| Part | Insulation Color | Contact Length - Mating [x] | Contact Length - Mating | Number of Rows | Style | Contact Finish - Mating | Contact Material | Overall Contact Length | Overall Contact Length | Material Flammability Rating | Insulation Height | Insulation Height | Mounting Type | Contact Finish - Post | Contact Shape | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Contact Type | Number of Positions | Connector Type | Shrouding | Number of Positions Loaded | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Contact Length - Post [x] | Contact Length - Post [x] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Length - Mating [x] | Contact Length - Post | Insulation Height [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Black | 0.23 in | 5.84 mm | 1 | Board to Board, Cable | Gold | Copper Alloy | 0.45 " | 11.43 mm | UL94 V-0 | 0.1 in | 2.54 mm | Through Hole | Tin-Lead | Square | 10 çin | 0.25 çm | Push-Pull | Male Pin | 14 | Header | Unshrouded | All | 105 ░C | -55 °C | Solder | 0.12 in | 3.05 mm | 2.54 µm | 100 µin | 3 A | 0.1 in | 2.54 mm | ||||||
Black | 0.23 in | 5.84 mm | 2 | Board to Board, Cable | Gold | Copper Alloy | 0.45 " | 11.43 mm | UL94 V-0 | 0.1 in | 2.54 mm | Through Hole | Tin-Lead | Square | 10 çin | 0.25 çm | Push-Pull | Male Pin | 14 | Header | Unshrouded | All | 105 ░C | -55 °C | Solder | 0.12 in | 3.05 mm | 2.54 µm | 100 µin | 3 A | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | ||||
Black | 0.318 " | 2 | Board to Board, Cable | Gold | Copper Alloy | UL94 V-0 | 6.14 mm | Through Hole, Right Angle | Tin-Lead | Square | 10 çin | 0.25 çm | Push-Pull | Male Pin | 14 | Header | Unshrouded | All | 105 ░C | -55 °C | Solder | 0.11 in | 2.54 µm | 100 µin | 3 A | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | 8.08 mm | 2.79 mm | 0.242 in | ||||||
Black | 0.23 in | 5.84 mm | 2 | Board to Board, Cable | Gold | Copper Alloy | UL94 V-0 | 6.14 mm | Through Hole, Right Angle | Tin-Lead | Square | 30 Áin | 0.76 Ám | Push-Pull | Male Pin | 14 | Header | Unshrouded | All | 105 ░C | -55 °C | Solder | 0.11 in | 2.54 µm | 100 µin | 3 A | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | 2.79 mm | 0.242 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.22 | |
| 10 | $ 1.03 | |||
| 100 | $ 0.92 | |||
| 500 | $ 0.75 | |||
| 1000 | $ 0.67 | |||
| 5000 | $ 0.59 | |||
| 10000 | $ 0.56 | |||
Description
General part information
2314 Series
Connector Header Through Hole 14 position 0.100" (2.54mm)
Documents
Technical documentation and resources
