Description
General part information
1469

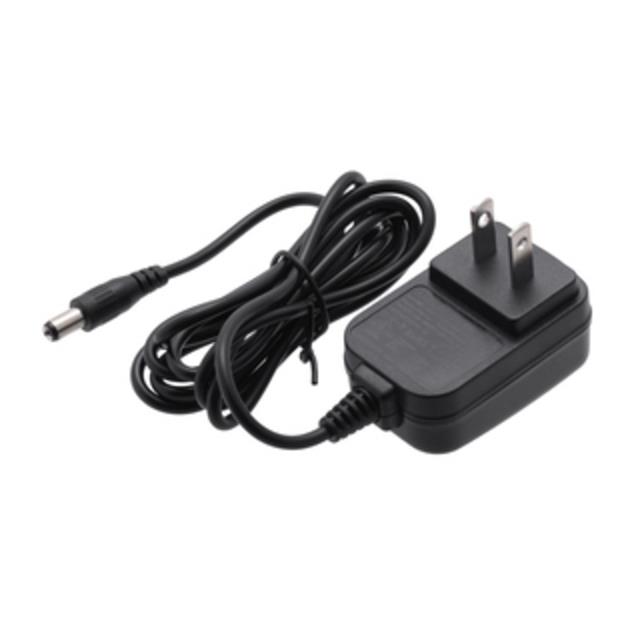

WALL ADAPTER 5VDC 1A, 5.5X2.1MM
Technical Specifications
Parameters and characteristics for this part
| Specification | 1469 |
|---|---|
| Approval Agency | UL |
| Cord Length | 60.2 in |
| Current - Output (Max) | 1 A |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P |
| Input Type | Fixed Blade |
| Output Connector | Barrel Jack |
| Output Connector I.D. | 2.1 mm |
| Output Connector Length | 0 |
| Output Connector O.D. | 5.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 5 W |
| Region Utilized | North America |
| Voltage - Input (AC) Maximum | 240 VAC |
| Voltage - Input (AC) Minimum | 100 VAC |
| Voltage - Output | 5 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
