GFE122032H-GPFE
ActiveGi Far technology Co., Ltd
122X32,STN-G,WHITE,80X36X13.7MM
GFE122032H-GPFE
ActiveGi Far technology Co., Ltd
122X32,STN-G,WHITE,80X36X13.7MM
Description
General part information
GFE122032H-GPFE

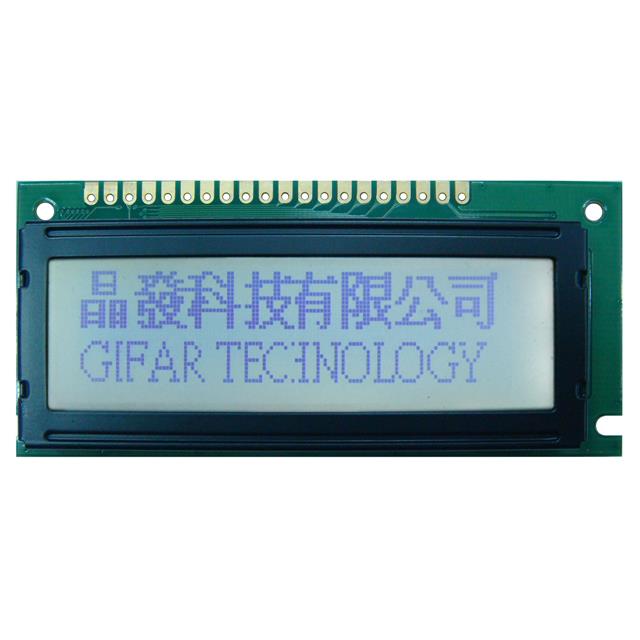

Graphic LCD Display Module Transmissive STN - Super-Twisted Nematic Parallel
Technical Specifications
Parameters and characteristics for this part
| Specification | GFE122032H-GPFE |
|---|---|
| Background Color | Blue |
| Backlight Color | White |
| Backlight Type | LED |
| Controller Type | ST7066U-0A |
| Display Mode | Transmissive |
| Display Type | STN - Super-Twisted Nematic |
| Dot Pitch Height | 0.7 mm |
| Dot Pitch Width | 0.5 mm |
| Dot Size Height | 0.65 mm |
| Dot Size Width | 0.45 mm |
| Interface | Parallel |
| Viewing Area Height | 18 mm |
| Viewing Area Width | 55 mm |
