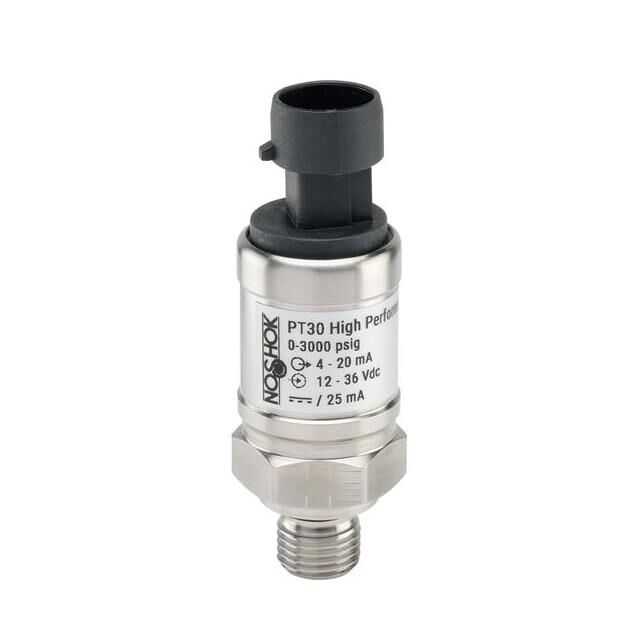

PT30-150PSIG-1-13-50-34
ActiveNOSHOK, Inc.
HIGH PERFOMANCE TRANSMITTER
PT30-150PSIG-1-13-50-34
ActiveNOSHOK, Inc.
HIGH PERFOMANCE TRANSMITTER
Description
General part information
PT30-150PSIG-1-13-50-34
HIGH PERFOMANCE TRANSMITTER
Technical Specifications
Parameters and characteristics for this part
| Specification | PT30-150PSIG-1-13-50-34 |
|---|---|
| Accuracy | 0.25 % |
| Applications | Industrial Automation, Industrial |
| Features | Temperature Compensated |
| Maximum Pressure | 450 PSI |
| Operating Pressure | 150 PSI |
| Operating Pressure (Max) | 150 PSI |
| Operating Pressure (Min) | 0 PSI |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| Output Type | Analog Voltage |
| Output Voltage (Max) | 4.5 V |
| Output Voltage (Min) | 0.5 V |
| Package / Case | Threaded, Cylinder |
| Pin Count | 3 pins |
| Port Diameter | 0.4375 in |
| Port Feature | SAE |
| Port Gender | Male |
| Port Style | Threaded |
| Pressure Type | Gauge |
| Termination Style | Packard |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 4.5 V |
