TT254
ObsoleteSWITCHCRAFT/CONXALL
CONN PLUG STEREO 4.39MM 3COND
TT254
ObsoleteSWITCHCRAFT/CONXALL
CONN PLUG STEREO 4.39MM 3COND
Description
General part information
TT254

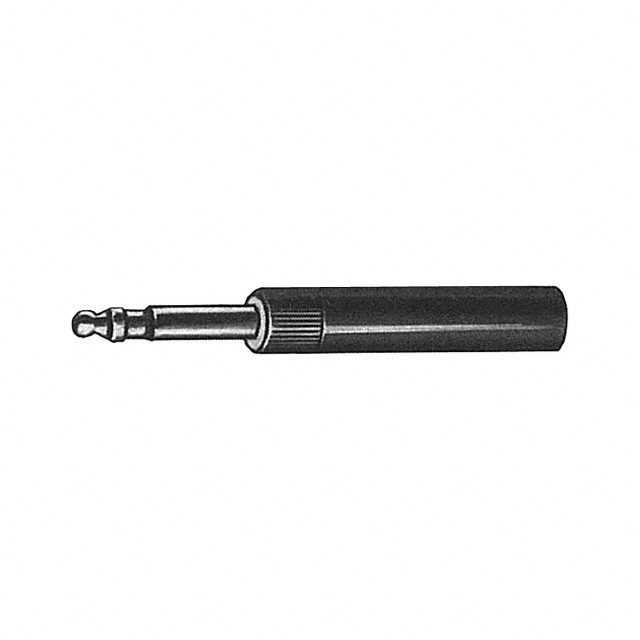

4.39mm (0.173") Phone Plug Stereo (3 Conductor, TRS) Connector Screw
Technical Specifications
Parameters and characteristics for this part
| Specification | TT254 |
|---|---|
| Actual Diameter | 0.173 in |
| Body Color | Black, Gold |
| Connector Type | Phone Plug |
| Contact Material | Copper Alloy |
| Contact Material - Plating | Natural |
| Features | Internal Interlock |
| Gender | Male |
| Housing Material | Thermoplastic |
| Includes | Connector, Handle, Screws, Terminals |
| Includes Total Count | 6 pcs |
| Industry Recognized Mating Diameter | 4.39 mm |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | 0.87 in |
| Mounting Type | Free Hanging (In-Line) |
| Number of Conductors | 3 Conductors |
| Number of Contacts | 3 Contacts |
| Shielding | Unshielded |
| Signal Lines | 3 Conductor, TRS, Stereo |
| Termination | Screw |
