BXR016
ActiveSWITCHCRAFT/CONXALL
SWITCH PUSH DPDT 0.25A 115V
BXR016
ActiveSWITCHCRAFT/CONXALL
SWITCH PUSH DPDT 0.25A 115V
Description
General part information
BXR016

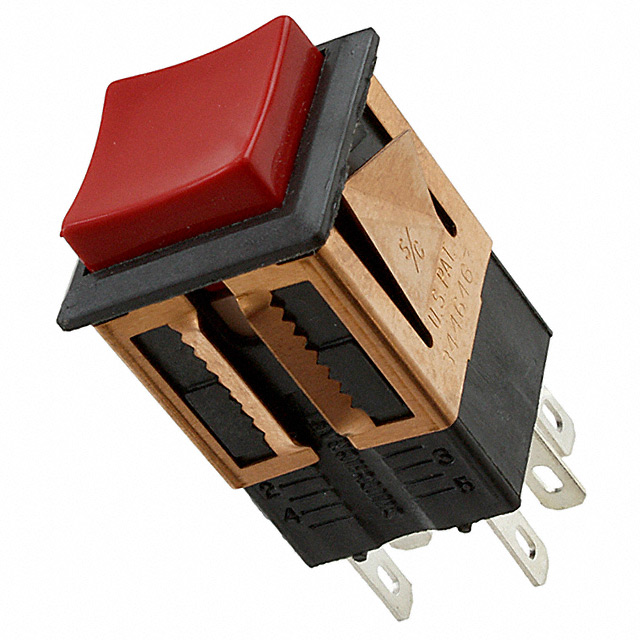

Pushbutton Switch DPDT Standard Panel Mount, Snap-In
Technical Specifications
Parameters and characteristics for this part
| Specification | BXR016 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Square, Button |
| Circuit | DPDT |
| Color - Actuator/Cap | Red |
| Current Rating | 250 mA |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Length | 15.75 mm |
| Panel Cutout Shape | Square |
| Panel Cutout Width | 15.75 mm |
| Quick Connect Size (0.110") | 0.11 in |
| Switch Function | On-Mom |
| Termination Style | Quick Connect |
| Type | Standard |
| Voltage Rating - AC | 115 V |
