KCD1MH
ObsoleteSCHNEIDER ELECTRIC
CONFIG SW BODY SELECT NON-ILLUM
KCD1MH
ObsoleteSCHNEIDER ELECTRIC
CONFIG SW BODY SELECT NON-ILLUM
Description
General part information

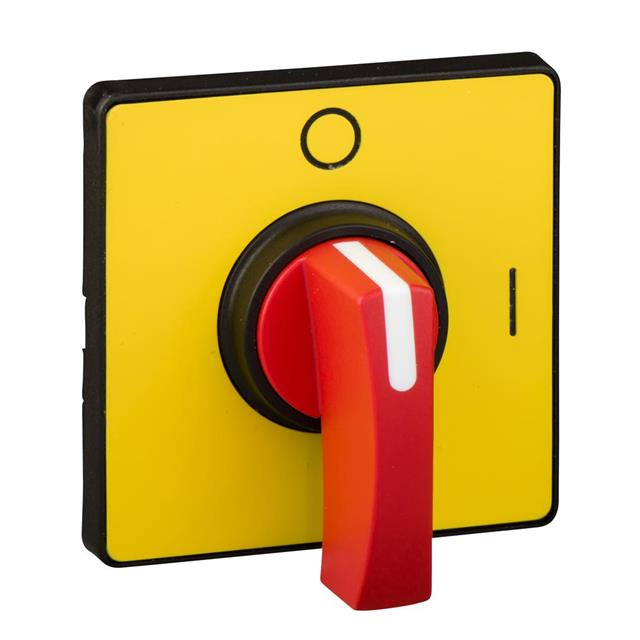

KCD1MH
Configurable Switch Body Selector Non-Illuminated
Technical Specifications
Parameters and characteristics for this part
| Specification | KCD1MH |
|---|---|
| Actuator Type | Selector |
| Compatible Series | Schneider, Harmony K |
| Illumination | Non-Illuminated |
| Panel Cutout Dimension | 22 mm |
| Panel Cutout Shape | Round |
| Requires | Contact Block(s) |
| Type | Maintained |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
