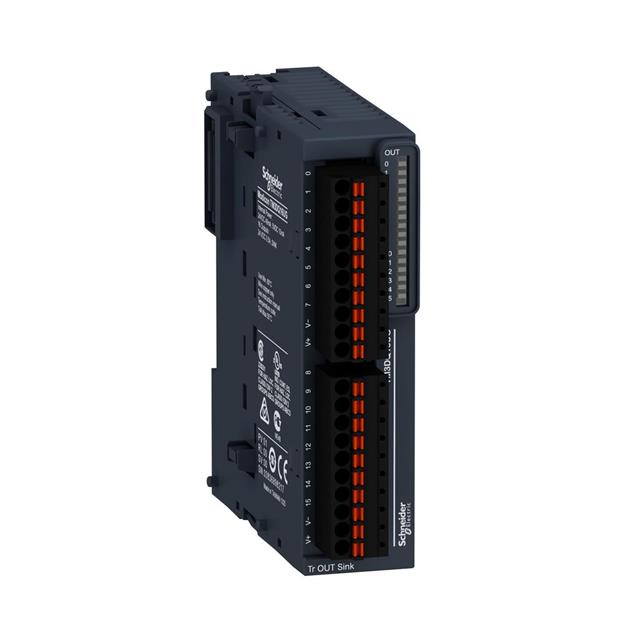

TM3DQ16UG
ActiveSCHNEIDER ELECTRIC
DISCRETE OUTPUT MODULE, MODICON
TM3DQ16UG
ActiveSCHNEIDER ELECTRIC
DISCRETE OUTPUT MODULE, MODICON
Description
General part information
TM3DQ16UG
Output Module DIN Rail 24VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | TM3DQ16UG |
|---|---|
| Approval Agency | cULus, C-Tick |
| For Use With/Related Products | Modicon TM3 Series |
| Ingress Protection | IP20 |
| Mounting Type | DIN Rail |
| Number of Outputs | 16 |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -10 °C |
| Output Type | Solid State |
| Termination Style | Screw Terminal |
| Type | Output Module |
| Voltage - Supply | 24 VDC |
