Description

General part information

1-929451-4

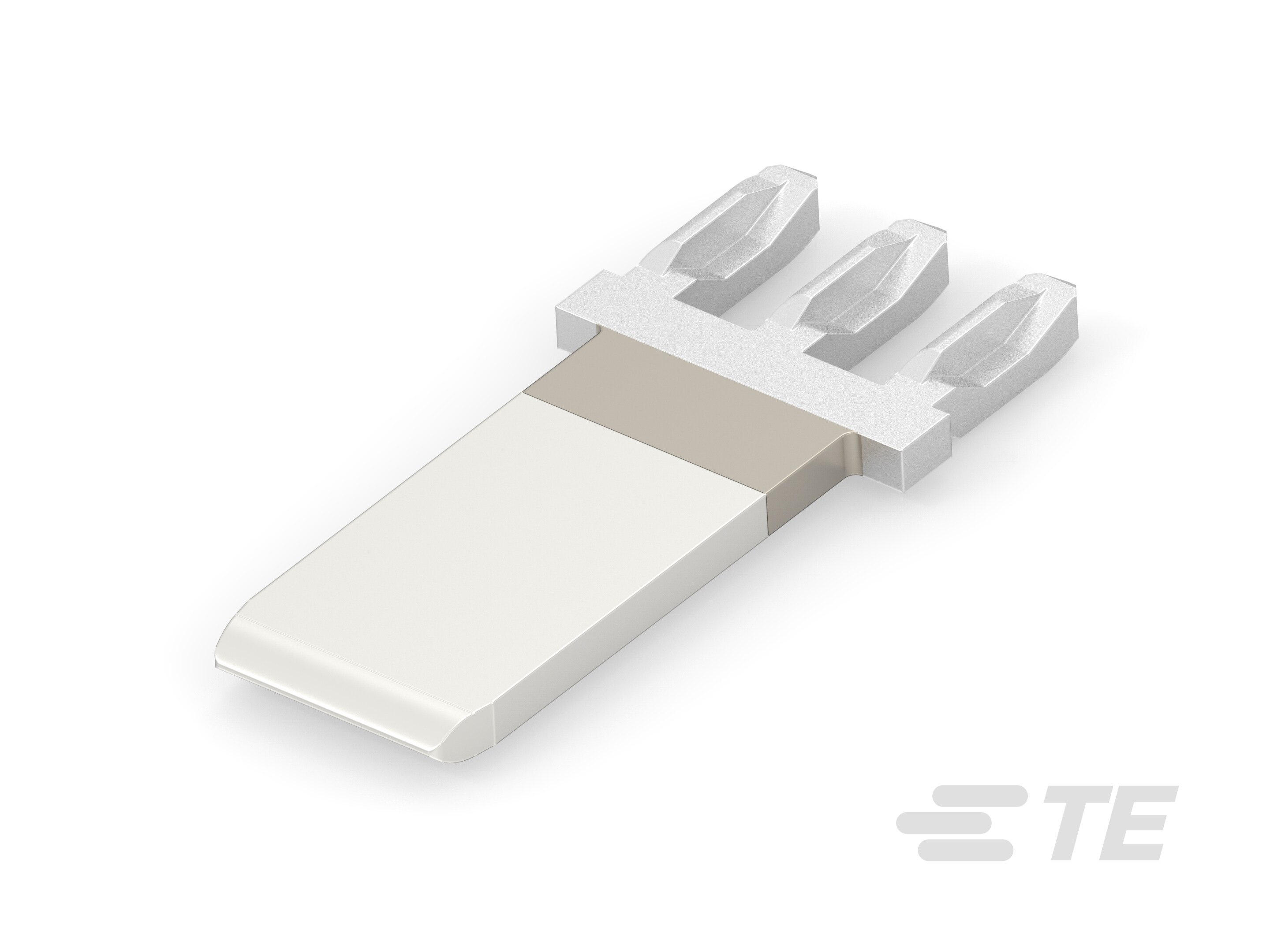

Tab Terminal, 4.8 mm [.189 in] Tab Width, Silver (Ag), .8 mm [.031 in] Tab Thickness, Unsealed, Terminates To Printed Circuit Board

Technical Specifications

Parameters and characteristics for this part

Specification1-929451-4
Contact FinishSilver
Contact MaterialBrass
InsulationNon-Insulated
Length - Overall0.606 in
Mounting Hole Diameter0.057 in
Mounting TypeThrough Hole
Pin Size - Above Flange (Diameter)0.031 in
Pin Size - Below Flange Diameter0.032 inches
Terminal StylePin Retention
Terminal TypePC Pin
TerminationPress-Fit
